Automatic Air Coil Winding Machine For Round bobbinless Coils

Automatic Air Coil Winding Machine For Round bobbinless Coils Automatic Air Coil Winding Machine For Round bobbinless Coils

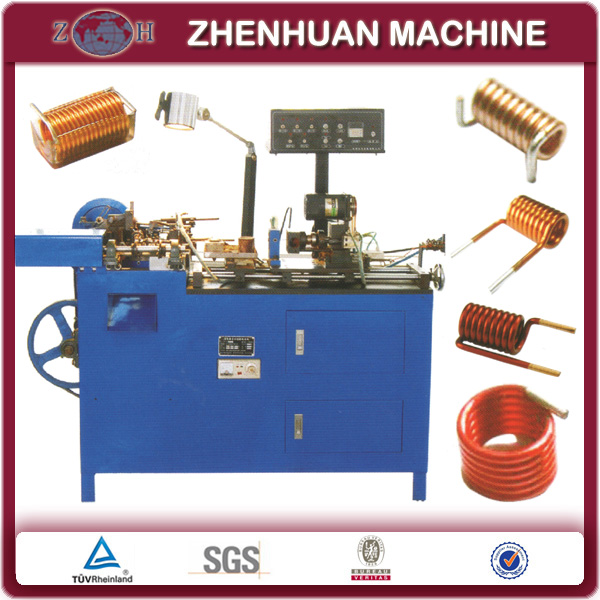

Product name:Automatic Air Coil Winding Machine For Round bobbinless Coils
Item:2-12
Details:

 Video of air coil winding machine Video of bobbinless coil winding machine
I Description of automatic air coil winding machine |
This machine is for automatically winding air core coils and so it is also called as bobbinless coil winding machine.
This machine is only for single-layer round air coils. If you want to produce other type bobinless coils, please contact with us.

|air coil winding machine| air coil winder| bobbinless coil winding machine| bobbinless coil winder|
II Main features of this automatic air coil winding machine
- Learning advantages from similar Japanese and Korean coil winding machines
- Main driving motor is advanced DC motor, speed adjustable
- Pneumatic cylinders are controlled by phototubes, easier adjustment
- Simple operation, easy adjustment  |air coil winding machine| air coil winder| bobbinless coil winding machine| bobbinless coil winder|
- Optional wire stripping machine and tinning device |
air coil winding machine| air coil winder| bobbinless coil winding machine| bobbinless coil winder|
|air coil winding machine| air coil winder| bobbinless coil winding machine| bobbinless coil winder|
III Air core coils can be produced by this automatic air coil winding machine
air core coils
|air coil winding machine| air coil winder| bobbinless coil winding machine| bobbinless coil winder|

|air coil winding machine| air coil winder| bobbinless coil winding machine| bobbinless coil winder|
IV Main technical data of this automatic air coil winding machine:

No.

Item

KXJ-01

KXJ-02

1

Suitable wire diameter

0.2-1.0mm

0.5-2.0mm*

2

Suitable air core coils

Referring to attached photos.

3

Stripping method

3 diamond blades, centrifugal type

4

Max. stroke of guide head

25mm

5

Max. Length of lead wire

30mm

6

Position of final lead wire

Adjusted freely

7

Main spindle speed

0-2800 rpm

8

Max. production speed

50 pcs/min

9

Air coil winding direction

Clockwise / anti-clockwise

10

Main spindle motor

DC 400W, speed adjustable

11

Stripping motor

AC 150W

12

Tinning oven power

400W

13

Electric power supply

Single phase 210~230V, 50Hz

14

Compressed air pressure

0.5~0.7MPa

15

Machine dimension

1550 x 600 x 1310mm

1650 x 850 x 1530mm

16

Machine weight

170kg

200kg

|air coil winding machine| air coil winder| bobbinless coil winding machine| bobbinless coil winder|
We can provide multi-axis CNC air coil winding machines for any kind of bobbinless coils. Please send us your air core coil shape, size, wire gauge, etc., and then we will quote you exact bobbinless coil winding machine.
 |air coil winding machine| automatic air coil winding machine| automatic air coil winding machine| air core coil winding machine| air core coil winding machine|
|bobbinless coil winding machine| bobinless coil winding machine| bobbinless coil winding machine| bobbinless coil winding machine|

←[Previous:2-13] [Next:2-10]→
