CNC Hot Air Bonding Air Coil Winding Machine for Self Supporting Air Core Coils

CNC Hot Air Bonding Air Coil Winding Machine for Self Supporting Air Core Coils
Product name:CNC Hot Air Bonding Air Coil Winding Machine for Self Supporting Air Core Coils
Item:2-16
Details:

I Description of CNC hot air bonding bobbinless coil winding machine
This system is a full automatic multi axis coil winding machine for winding self supporting air core coils by using thermo-plastic coated wire. The wire is heated by the hot air supply as it is wound onto the coil and the turns are bonded together by the adhesive.
Applications include: RFID coils. laser heads, voice coils, magnet coils, sensor coils, vibrator coils and pancake motor coils.
II Self bonding bobbinless coils by the CNC bobbiness coil winding machine:

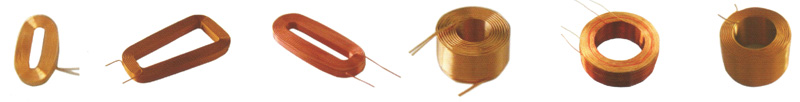

self bonded air core coils by CNC hot air bonding bobbinless coil winding machine
III Main features of CNC hot air bonding bobbinless coil winding machine

- Simple structure, high precision processing, long machine life

- 3 axis CNC control, full automatic

- Both side jigs rotate simultaneously driven by synchronization belt, no damage to thermal-plastic coated wire

- Low noise level during high speed rotating

- Winding width setting by servo motor, easier adjustment and higher precision

- CNC control system adopts SAMSUNG microcontroller, simple operation, easy programming

- Optional full seal protection cover

IV Main technical data of CNC hot air bonding bobbinless coil winding machine

No.

Item

KXJ-063

1

Winding wire range

0.04-0.4mm

2

Suitable air core coils

Referring to attached photos.

3

Bonding method

Hot air

4

Max. stroke of guide head

25mm

5

Lead position

Arbitrary

6

Spindle speed

0-3000 rpm

7

Max. production speed

6 pcs/min

8

Air coil winding direction

Clockwise / anti-clockwise

9

Winding spindle motor  (Y-axis)

AC400W, servo

10

Wire guiding motor     (Z-axis)

AC 400W, servo

11

Coil height adjust motor (U-axis)

AC 400W, servo

12

Y-axis setting range

0 - ±999999C359º

13

U-axis setting precision

0.01mm

14

Winding spindle stop precision

15

Winding set resolution ratio

0.1º

16

Hot air heating element power

AC 1500W

17

Electric power supply

Single phase 210~230V, 50Hz

18

Compressed air pressure

0.5~0.7MPa

19

Machine dimension

1000 x 700 x 1760mm

20

Machine weight

250kg
