CNC Self Supporting Air Coil Winder for Fine Wire Bonded Bobbinless Coils

CNC Self Supporting Air Coil Winder for Fine Wire Bonded Bobbinless Coils
Product name:CNC Self Supporting Air Coil Winder for Fine Wire Bonded Bobbinless Coils
Item:2-15
Details:

video of CNC self supporting air coil winder
I Description of CNC self supporting air coil winder
A stand alone fully automatic system for winding self supporting air coils using wire coated with thermo-plastic adhesive. The wire is heated by the hot air supply as it is wound onto the coil, and the turns are bonded together by the adhesive. The finished coil is removed from the tooling and automatically ejected from the machine.
Applications include: RFID coils. laser heads, voice coils, magnet coils, sensor coils, vibrator coils and pancake motor coils.
|self supporting air coil winder| self supporting air coil winder | self supporting air coil winder| self supporting air coil winder|
II Main features of CNC self supporting air coil winder

- Simple structure, high precision processing, long machine life

- Both side jigs rotate simultaneously driven by synchronization belt, no damage to thermal-plastic coated wire

- Low noise level during high speed rotating  |self supported air coil winder| self supported air coil winder|

- Coil height adjusted by microcalipper, simple & intuitionistic, high precision

- CNC control system adopts SAMSUNG microcontroller, simple operation, easy programming

- Optional full seal protection cover |self supported air coil winder| self supported air coil winder| self supported air coil winder|
|self supporting air coil winder| self supporting air coil winder | self supporting air coil winder| self supporting air coil winder|

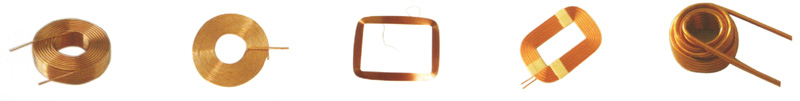

III Photos of self supporting bonded air coils:


self supported bonded air coils by CNC self supporting air coil winder
|self supporting air coil winder| self supporting air coil winder | self supporting air coil winder| self supporting air coil winder|
IV Main technical data of CNC self supporting air coil winder:

No.

Item

KXJ-062

1

Suitable wire diameter

0.04-0.4mm

2

Suitable air core coils

Referring to attached photos.

3

Bonding method

Hot air

4

Max. stroke of guide head

25mm

5

Position of final lead wire

Adjusted freely

6

Main spindle speed

0-3000 rpm

7

Max. production speed

6 pcs/min

8

Air coil winding direction

Clockwise / anti-clockwise

9

Winding spindle motor  (Y-axis)

AC400W, servo

10

Wire guiding motor     (Z-axis)

AC 400W, servo

11

Y-axis setting range

0 - ±999999C359º

12

Winding spindle stop precision

13

Winding set resolution ratio

0.1º

14

Hot air heating element power

AC 1500W

15

Electric power supply

Single phase 210~230V, 50Hz

16

Compressed air pressure

0.5~0.7MPa

17

Machine dimension

1000 x 700 x 1760mm

18

Machine weight

250kg

|self supporting air coil winder| self supporting air coil winder | self supporting air coil winder| self supporting air coil winder|
|self supported air coil winder| self supported air coil winder| self supported air coil winder| self supported air coil winder|
