I Description of HV foil winding machine
Thismachine is also called as HV foil coil winding machine or HV foil coiling machine, is specially designed for winding high voltage foil type coils used in distribution transformers and power transformers.
This is a high automation machine. Original position of winding unit, foil movement, total turns, sectional turns in 25 sections, rectifying precision, deceleration speed, etc., can be preset on big size 10.4” touch screen.

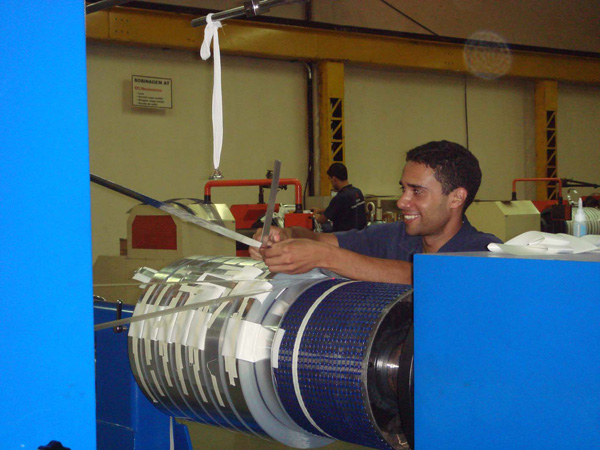

|transformer HV foil coiling machine| transformer HV foil coiling machine| transformer HV foil coiling machine|

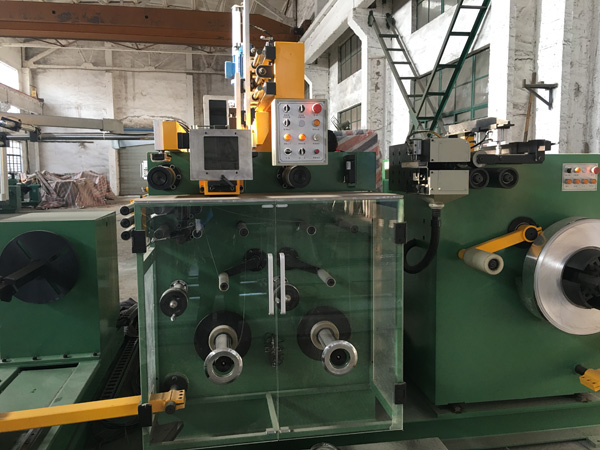

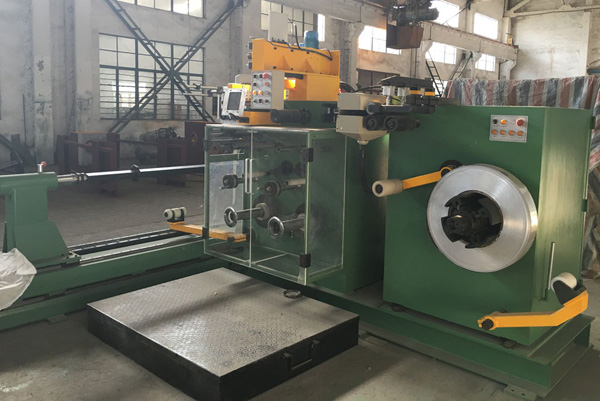

II Main buildup of HV foil winding machine
- Foil pay-off devices (one or two)
- Burr-removing device
- Dust-removing device
- Interlaminar insulation pay-off devices (two)
- Argon welding system (equipped with 160A argon welder)
- Main winding unit
- Automatic rectifying system
- Pneumatic system
- Electric control system |dry-type tranformer foil winding machine| dry-type transformer foil winding machine|dry-type transformer foil winding machine|dry-type transformer foil winding machine| dry-type transformer foil winding machine|
III Main features
- Special pneumatic + mechanic tensioning device for foil pay-off
- Special burr-removing structure (one fixed bottom cylinder + two width adjustable top cylinders), pneumatic pressure adjustable, perfect burr-revmoving result
- Tension of interlaminar insulation is pneumatic adjustable and displayed by valve meters; Interlaminar insulations will be covered by organic glass shield for dust-proof purpose.
- Convenient argon welding system
- Phototube sensor rectifying foil pay-off transversely moving on linear guide, sensitive & high precision
- Whole body of welding unit is movable on linear guide and driven by servo motor & ball screw, high rectifying precision
- Low-noise winding spindle
- Large size 10.4” HMI, easy & simple operation
- PLC control, high automation
|transformer HV foil winding machine| transformer HV foil winding machine| transformer HV foil winding machine|
IV Main technical data of HV foil winding machine
|
No.
|
Item
|
Data
|
|
1
|
Foils Pay-off stands
|
2 units
|
|
|
Expanding range
|
380-420mm
|
|
|
Expanding shaft width
|
200mm
|
|
|
Max. OD of foils
|
800mm
|
|
|
Max. weight of foils
|
500kg
|
|
|
Foil width
|
25-200mm
|
|
|
Foil thickness
|
0.5-1.5mm
|
|
|
Tension of foils
|
30~1200N
|
|
|
Pay-off speed
|
150m/min
|
|
|
Main driving motor power
|
5.5kW
|
|
2
|
Interlaminar insulation pay-off stands
|
2 units
|
|
|
Expanding range
|
73-80mm
|
|
|
Expanding shaft length
|
220mm
|
|
|
Suitable insulation paper reel OD.
|
Max. 400mm
|
|
|
Width of insulation paper
|
25-220mm
|
|
|
Thickness of insulation paper
|
0.02-0.2mm
|
|
|
Tension of insulation paper
|
15-80N
|
|
|
Driving motor
|
1.5kW x 2
|
|
3
|
Winding unit
|
|
|
|
Winding speed
|
0-80rpm
|
|
|
Winding torque
|
1580N·m
|
|
|
Main driving motor
|
7.5kW
|
|
|
Center height
|
1200mm
|
|
|
Distance between main spindle box and tail stock
|
700-1300mm
|
|
|
Suitable max. diameter of coil
|
1000mm
|
|
|
Suitable max. width of coil
|
1200mm
|
|
|
Suitable max. weight of coil
|
1500kg
|
|
|
Rectifying precision of foil
|
±0.4mm
|
|
4
|
TIG welding system
|
|
|
|
Welding current
|
160A
|
|
|
Welding speed
|
0-0.7m/s
|
|
|
Driving motor
|
0.18kW
|
V Main configuration of HV foil winding machine
- PLC: Mitsubishi from Japan
- Touch screen (HMI): Famous brand from China
- Servo motors and drivers: Yaskawa from Japan
- Inverter: Yaskawa from Japan
- Contators & buttons: Schneider from China |HV foil winding machine| HV foil coil winding machine| HV foil coiling machine|HV foil winding machine| HV foil coil winding machine| HV foil coiling machine|
