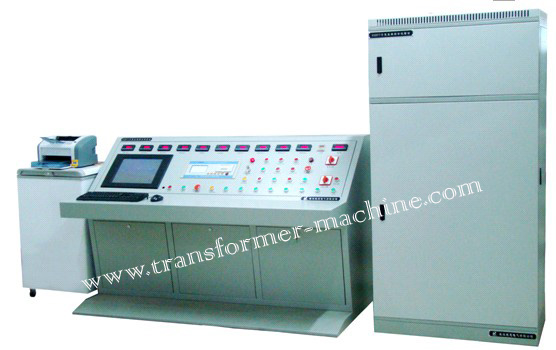

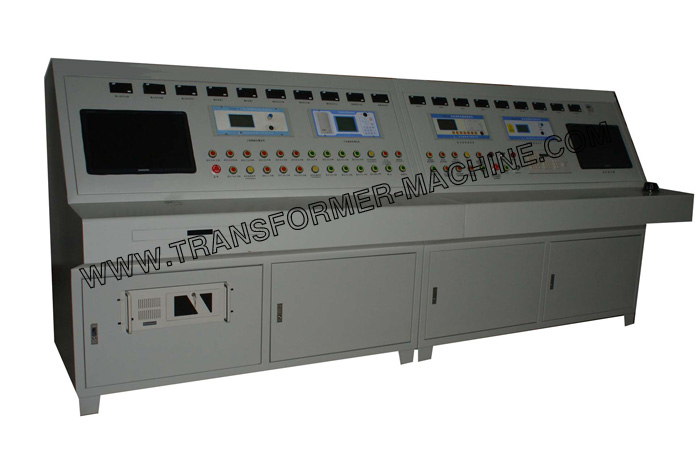

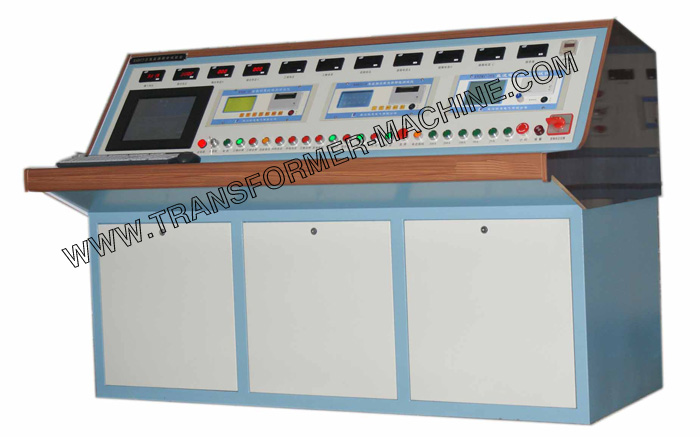

Transformer Test System

Transformer Test System Transformer Test System Transformer Test System Transformer Test System
Product name´╝ÜTransformer Test System
Item´╝Ü6-2
Details´╝Ü

Description:
This is an integrated test bench, combined many routine tests together, such as tests for no-load loss, no-load current, impedance voltage and load loss, measure out DC resistance and transformation ratio. And thus it provides reliable data for supervising and manufacturing transformers.
|transformer integrated test bench| transformer integrated test bench| transformer integrated test bench| transformer integrated test bench|
Features:
- Combines many tests together: no-load test (less than 5000kVA), transformation ratio test, DC resistance test, insulation resistance test, impedance test, THG induced over-voltage withstand test and AC voltage withstand test.
- Measure parameter is numerical display and menu display; parameters can be set.
- There are date, day, time, temperature, humidity displaying on the bench, convenient for file.
- All test data can be displayed and printed out
|transformer integrated test bench| transformer integrated test bench| transformer integrated test bench| transformer integrated test bench|
Specifications:
- Measuring range:
   1) Voltage: 0~450V; Precision: 0.1 grade.
   2) Current: 0~5A; Precision: 0.1 grade (percentage current value)
   3) AC voltage withstand test: 0~100KV (adjustable)
   4) High voltage measuring: 0~100kV; precision 0.1 grade.
- Dimension: 2090 x 980 x 1380mm
- Current range: 2.2/5A, 5/5A, 10/5A, 20/5A, 50/5A, 100/5A, 150/5A, 200/5A, 300/5A (chosen by operator according to the transformer capacity to be tested)
Note: This transformer test system can be customerized according to detailed requirements.
|transformer test system| transformer test system| transformer test system| integrated transformer test system| integrated transformer test system| TTS| TTS| TTS|
ÔćÉ[Previous´╝Ü6-16]

Related Products :

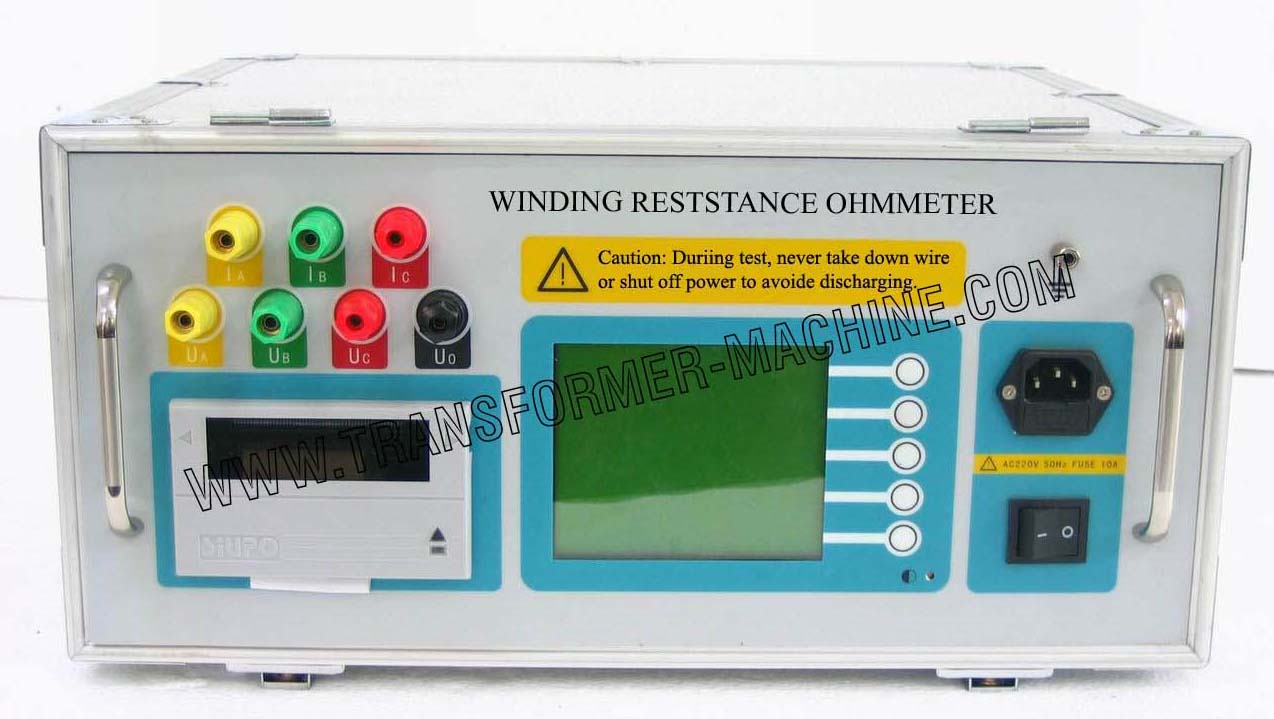

Transformer winding resistance ohmmeter
Transformer winding resistance ohmmeter

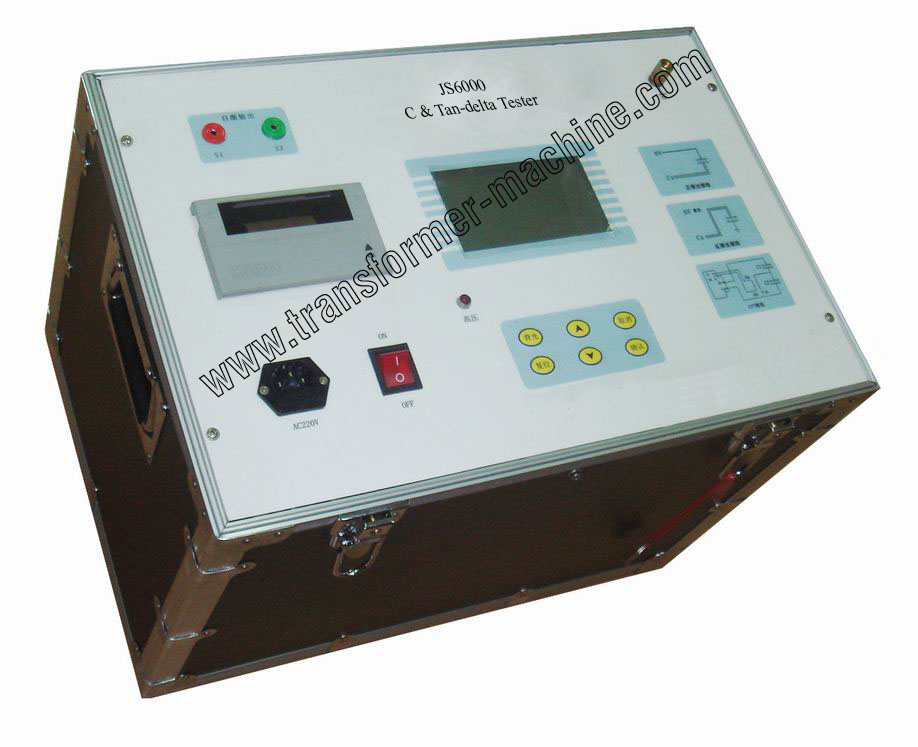

capacitance & dissipation factor measuring bridge
capacitance & dissipation factor measuring bridge

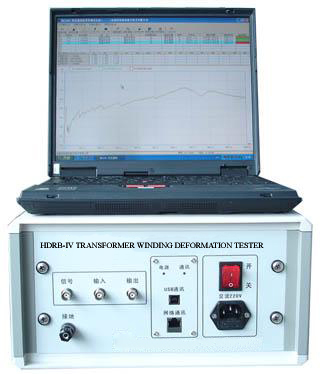

transformer winding deformation tester
transformer winding deformation tester

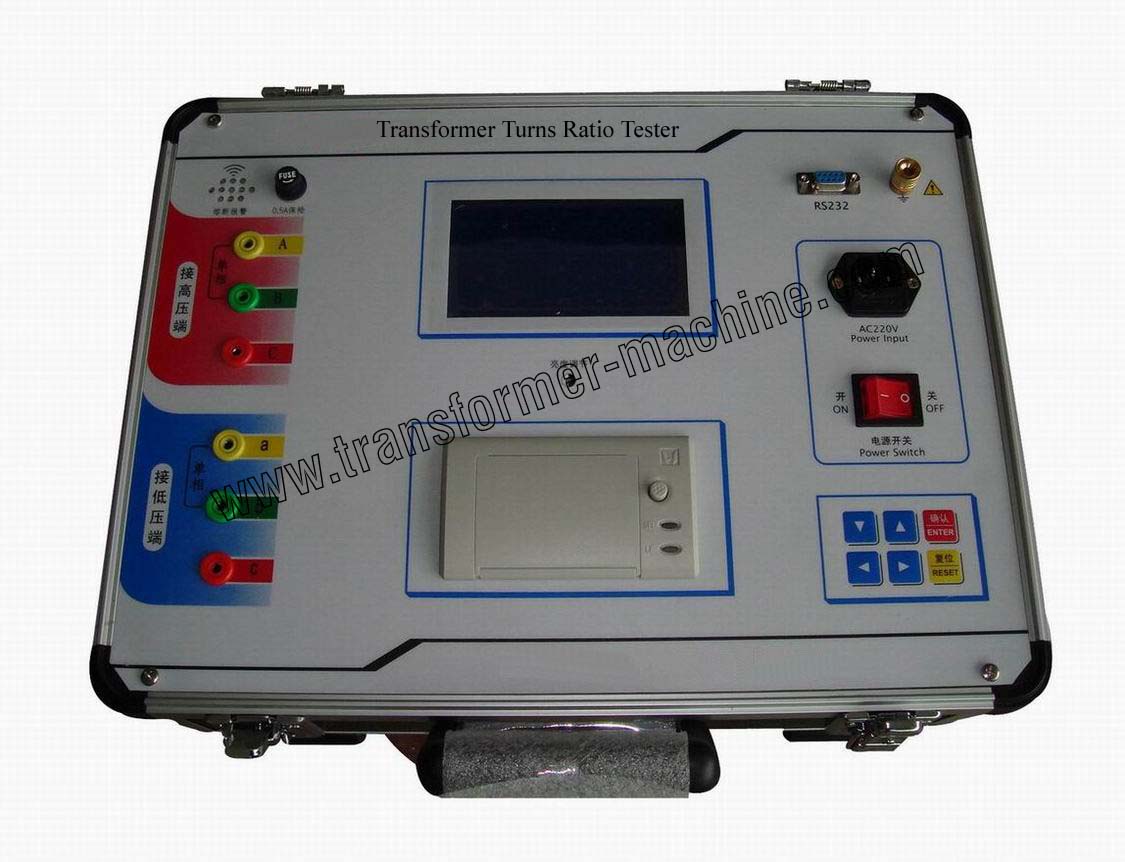

Transformer turns ratio meter
