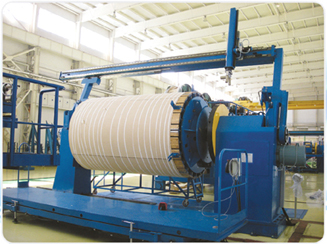

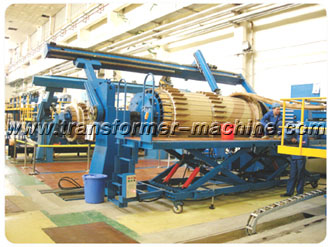

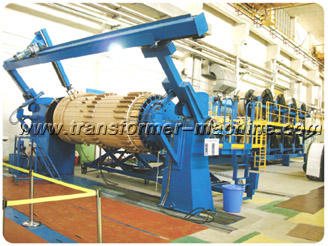

Horizontal Coil Winding Machine With Flexible Compacting Device

Horizontal Coil Winding Machine With Flexible Compacting Device Horizontal Coil Winding Machine With Flexible Compacting Device Horizontal Coil Winding Machine With Flexible Compacting Device Horizontal Coil Winding Machine With Flexible Compacting Device
Product name:Horizontal Coil Winding Machine With Flexible Compacting Device
Item:2-3-2
Details:

I Description

This kind of machine is used for winding coils of big capacity transformers and reactors from 5 tons to 35tons!
This machine can be equipped with vertical and horizontal compacting devices and so the windings will be more compact and even, and thus assures the quality of winding coils.
Equipped with advanced electronic counter which can count both positive and reverse turns, and also has power-off memorizing function.

II Specifications

Parameters

WRJ-5

WRJ-10

WRJ-15

WRJ-20

WRJ-25

WRJ-35

Max. load                                                 (T)

5

10

15

20

25

35

Max. coil diameter                                (mm)

1500

1800

2000

2800

2800

3000

Chuck diameter                                     (mm)

750

1000

1400

1800

1800

2000

Distance between chuck and tail       (mm)

3000

3000

3500

4600

4600

4600

Height of main spindle                        (mm)

1200

1400

1600

1800

1800

1800

Stroke of tail stock                               (mm)

2000

2000

2000

2600

2600

2600

Turning range of compacting device

35°

Stroke of compacting head                (mm)

500

750

750

750

1040

1040

Speed of main spindle                      (r/min)

0~10

0~10

0~10

0~10

0~10

0~7

Max. vertical compacting force       (kgf)

120

160

160

160

160

160

Max. horizontal compacting force  (kgf)

250

300

300

300

300

300

Max. torque                                       (N.m)

8000

15000

2000

25000

30000

40000
