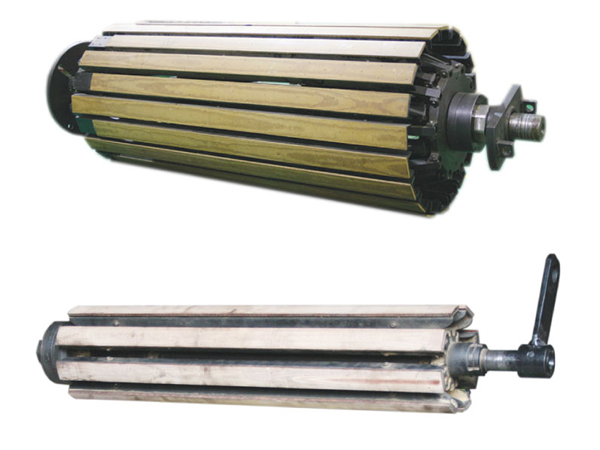

Expandable Winding Mandrel

Expandable Winding Mandrel Expandable Winding Mandrel Expandable Winding Mandrel
Product name:Expandable Winding Mandrel
Item:2-7
Details:

Description of expanding mandrel:
Expandable winding mandrels, outer diameter is adjustable, motorized or manual expanded.
The diameter variation is big; taking-off is convenient, suitable for both horizontal winding machine and vertical winding machine.

Specification of expanding mandrel:

Code

Max. coil weight (t)

Expanding range (mm)

Expanding range with pad (mm)

No. of bars

Bar length (mm)

Total length (mm)

KTM-1

1

Ф160-Ф200

Ф210-Ф310

6

1200

1500

KTM-2

2

Ф200-Ф300

Ф310-Ф410

6

1200

1500

KTM-3

3

Ф300-Ф400

Ф410-Ф510

6

1200

1500

KTM-4

4

Ф400-Ф500

Ф510-Ф610

8

1500

2000

KTM-5

5

Ф500-Ф600

Ф610-Ф710

8

1500

2000

KTM-6

6

Ф600-Ф700

Ф810-Ф910

12

2000

3000

KTM-7

8

Ф700-Ф800

Ф910-Ф1010

12

2000

3000

KTM-8

10

Ф800-Ф900

Ф1010-Ф1110

16

2000

3000

KTM-9

13

Ф900-Ф1000

Ф1110-Ф1210

16

2500

3700

KTM-10

16

Ф1100-Ф1200

Ф1210-Ф1310

20

2500

3700

Note: Special bar length or expanding range can be ordered.
