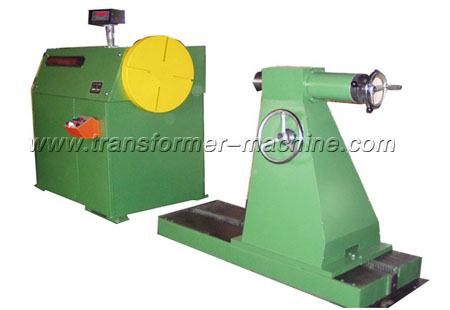

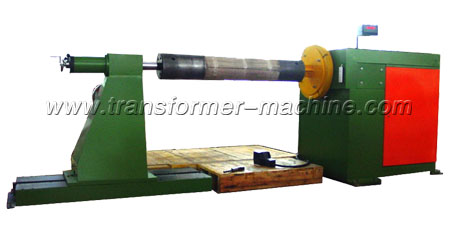

Servo Spindle Coil Winding Machine

Servo Spindle Coil Winding Machine Servo Spindle Coil Winding Machine
Product name:Servo Spindle Coil Winding Machine
Item:2-2-1
Details:

Description
This winding machine is our patent product. Its main spindle is driven by servo motor and cycloid pin-wheel reducer. It has wide speed adjusting range, super-high torque, and perfect servo spindle control function.

Main configuration
-- Fuji inverter from Japan
-- Fukuta servo motor from Taiwan
-- Transcyko reducer from Taiwan
-- Counter and encoder from Taiwan

Specifications

Item                Code

SRXJ-150

SRXJ-400

SRXJ-800

SRXJ-1600

Height of clicker center (mm)

1000

1000

1000

1000

Diameter of disc clicker (mm)

450

560

600

800

Space between clicker and tail supporter (mm)

1000-1600

1000-2000

800-1650

800-1650

Max. torque of clicker (N·m)

1500

4000

8000

16000

Rotating speed of clicker (r/min)

0~80

0~80

0~80

0~80

Max. bearing weight (kg)

1000

1500

1500

2000

Rated power of servo motor (kW)

2.2

3.7

7.5

15

Counter counting range

0~9999.9

Dimension

(mm)

length

1800

2450

2450

3700

width

300

400

400

650

height

1114

1280

1280

1280
