Automatic Air Coil Winding Machine For Round bobbinless Coils |
 |
| Product name：Automatic Air Coil Winding Machine For Round bobbinless Coils |
| Item：2-13 |
| Details： |
| |
I Description of the KXJ-013CNC automatic multi axis bobbinless coil winding machine:
This KXJ-013CNC machine is a full automatic machine, 3 axis drive, for producing multi-layer bobbinless coils and both round and rectangular air core coils.
|automatic multi axis bobbinless coil winding machine| automatic multi axis air coil winding machine| automatic bobbinless coil winder|
II Main features of KXJ-013CNC automatic multi axis bobbinless coil winding machine:
- Adopting high precision ball screw and bearings from Korea, higher winding & guiding precision, longer machine life.
- All three axes are servo motor control, low noise, stable running |automatic bobbinless coil winding machine|
- CNC control system adopts SAMSUNG microcontroller, simple operation, easy programming
- Optional wire stripping machine and tinning device |automatic bobbinless coil winding machine|automatic air coil winding machine|
- Optional full seal protection cover |automatic multi axis bobbinless coil winding machine| automatic multi axis air coil winding machine| automatic bobbinless coil winder| automatic multi axis bobbinless coil winding machine | automatic multi axis bobbinless coil winder|

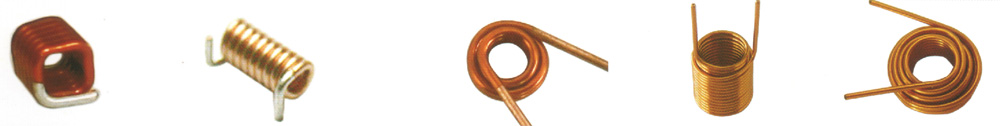

III Air core coils can be produced by this automatic multi axis bobbinless coil winding machine:
|automatic multi axis bobbinless coil winding machine| automatic multi axis air coil winding machine| automatic bobbinless coil winder|
|automatic multi axis bobbinless coil winding machine| automatic multi axis air coil winding machine| automatic bobbinless coil winder|
IV Main technical data of this KXJ-013CNC automatic multi axis bobbiness coil windng machine:
|
No.
|
Item
|
KXJ-013CNC
|
|
1
|
Suitable wire diameter
|
0.2-1.0mm*
|
|
2
|
Suitable air core coils
|
Referring to attached photos.
|
|
3
|
Stripping method
|
3 diamond blades, centrifugal type
|
|
4
|
Max. stroke of guide head
|
90mm
|
|
5
|
Max. Length of lead wire
|
30mm
|
|
6
|
Position of final lead wire
|
Adjusted freely
|
|
7
|
Main spindle speed
|
0-3000 rpm
|
|
8
|
Max. production speed
|
50 pcs/min
|
|
9
|
Air coil winding direction
|
Clockwise / anti-clockwise
|
|
10
|
CAM axis driving motor (X-axis)
|
AC750W, servo
|
|
11
|
Winding spindle motor (Y-axis)
|
AC 400W, servo
|
|
12
|
Wire guiding motor (Z-axis)
|
AC 400W, servo
|
|
13
|
X-axis setting range
|
0.1º-359.9º
|
|
14
|
Y-axis setting range
|
±0.1º - ±99C359º
|
|
15
|
Winding spindle stop precision
|
0º
|
|
16
|
Winding set resolution ratio
|
0.1º
|
|
17
|
Stripping motor
|
AC 100W
|
|
18
|
Tinning oven power
|
400W
|
|
19
|
Electric power supply
|
Single phase 210~230V, 50Hz
|
|
20
|
Compressed air pressure
|
0.5~0.7MPa
|
|
21
|
Machine dimension
|
1290 x 460 x 1660mm
|
|
22
|
Machine weight
|
200kg
|
|automatic multi axis bobbinless coil winding machine| automatic multi axis bobbinless coil winder| automatic multi axis air coil winding machine| automatic multi axis air coil winder|automatic multi axis bobbinless coil winding machine| automatic multi axis bobbinless coil winder| automatic multi axis air coil winding machine| automatic multi axis air coil winder| automatic bobbinless coil winding machine| automatic bobbinless coil winder| automatic bobbinless coil winding machine| |
 |
