  Products


Continuous extruding machine

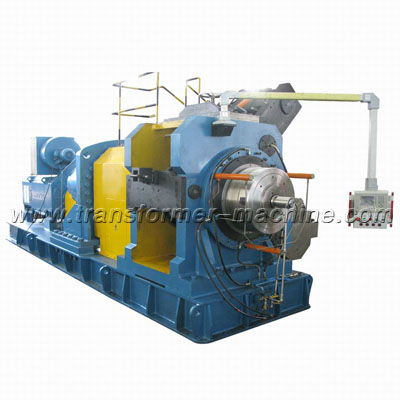

Continuous extruding machine Continuous extruding machine Continuous extruding machine Continuous extruding machine

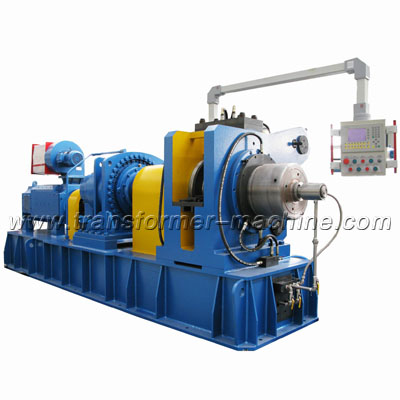

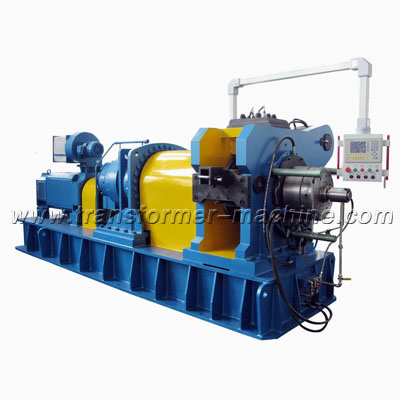

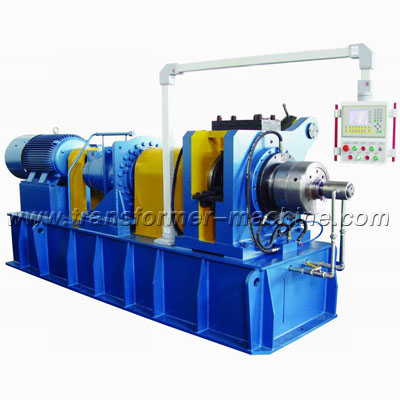

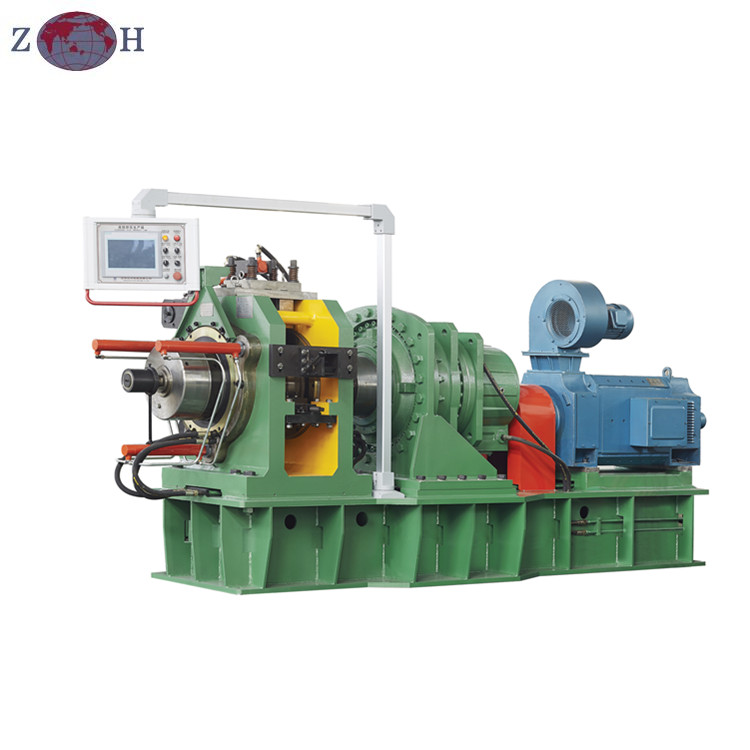

Product name:Continuous extruding machine
Item:8-6
Details:

Video link of copper continuous extrusion line
Principle:
MFCCE series adopts advanced technology in the world, continuously feeding rod type blank material into a revolving squeezing wheel with groove. In the fixed groove, a sufficient temperature is generated by enormous force of friction and extrusion which make the material re-crystallized. And then material will be extruded and formed out of special dies. Thus various aluminum/copper profiles will be produced continuously.

Usage:

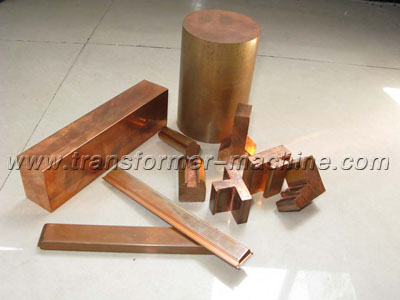

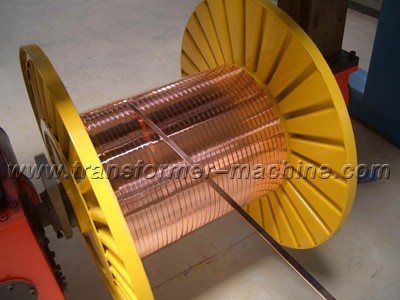

For producing various copper flat wire, copper bar, copper busbar, copper rod; aluminum flat wire, aluminum round pipe, aluminum flat pipe with holes, etc.

Advantages:
- Smooth and bright surface without burr, precious physical dimension
- Fine tissue, refined grain crystal, good performance evenness
- Perfect electric conductivity
- Can reach perfect soft and semi-hard, in any length
- Compact area occupation, low energy consumption, no material waste

◆MFCC300: for copper flat wire, aluminum flat wire, aluminum round pipe, aluminum flat pipe with holes



Item

MFCC300

Copper

Aluminum

Dia. of squeezing wheel (mm)

300

Material

Copper/copper alloy

Aluminum/LD31,Lf21 alloy

Dia. of blank material   (mm)

Φ8-12.5

Φ9.5-12

Max. product width    (mm)

40

Product section area   (mm2)

5-150

6-30(round); ≤50 (flat)

Average productivity  (kg/h)

400

180

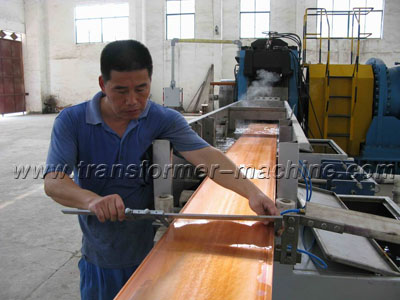

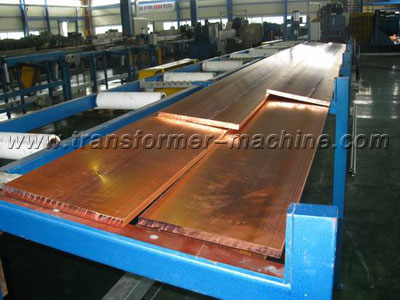

|copper busbar continuous extruding machine|copper busbar continuous extruding machine|copper busbar continuous extruding machine|
◆MFCCE350: mainly for copper magnetic wire, special profile and busbar, etc. Can be equipped with one die for two wires.

Item

MFCCE350

Diameter of squeezing wheel       (mm)

350

Material

Copper or copper alloy

Diameter of blank material         (mm)

Φ12.5-Φ16

Max. width of finished product     (mm)

Copper bar 80; copper rod Φ 40

Section area of finished product     (mm2)

10-800

Average productivity              (kg/h)

780

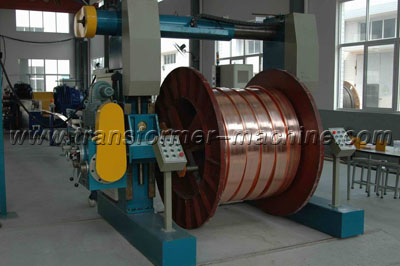

|copper wire continous extrusion line|copper wire continous extrusion line|copper wire continous extrusion line|copper wire continous extrusion line|
◆MFCCE400: special for copper bar, copper busbar, copper rod. Equipped with changeable stopper, production cost decreases too much.

Item

MFCCE400

Diameter of squeezing wheel       (mm)

400

Material

Copper or copper alloy

Diameter of blank material         (mm)

Φ20

Max. width of finished product     (mm)

Copper bar 170; copper rod Φ 80

Section area of finished product     (mm2)

100-2400

Average productivity              (kg/h)

1200

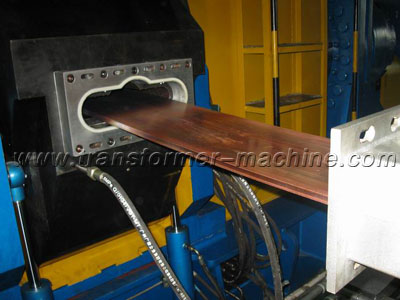

|copper strip continuous extrusion line|copper strip continuous extrusion line|copper strip continuous extrusion line|copper strip continuous extrusion line|
◆MFCCE550: suitable for big size copper busbar, oxygen-free copper blank strips and other copper alloy.

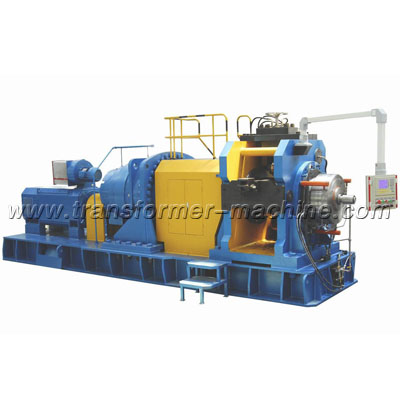

|copper continuous extrusion machine| copper continuous extrusion machine|copper continuous extrusion machine| copper continuous extrusion machine|

Item

MFCCE550

Diameter of squeezing wheel       (mm)

550

Material

Copper or copper alloy

Diameter of blank material         (mm)

Φ30

Max. width of finished product     (mm)

Copper bar 260; copper rod Φ 90

Section area of finished product     (mm2)

300-5000

Average productivity              (kg/h)

2000

◆MFCCE630: special for big size copper busbar, oxygen-free copper blank strips


Item

MFCCE630

Diameter of squeezing wheel       (mm)

630

Material

Copper or copper alloy

Diameter of blank material         (mm)

Φ30

Max. width of finished product     (mm)

Copper bar 320; copper rod Φ 100

Section area of finished product     (mm2)

400-7000

Average productivity              (kg/h)

2500

  |continuous extruding machine| continuous extruding machine| continuous extruding machine| continuous extruding machine| continuous extruding machine|
