Product name:Flat Conductor Drawing Machine
Item:8-9
Details:


I Description

This is a production line, comprised of pay-off stand, flattening machine, tensioning frame, 3-for-1 conductor drawing machine, length counting device, take-up stand, control system and wire pointing & stringing machine, is for drawing rectangular copper/aluminum conductors continuously.

II Main technical parameters

Item

Data

Suitable raw material

Copper / aluminum rod in reel

Suitable reel OD

1700mm (or customerized)

Suitable reel weight

Max. 3500kg

Max. rod diameter

16mm

Section area of drawn rectangular conductor

5-120mm²

Conductor drawing-out speed

120m/min (continuously adjustable)

Main driving power of flattening section

37kW (inverter control)

Main driving power of drawing section

75kW (inverter control)

Drawing dies

3

Drawing ratio of each die

18~22%

Drawing wheel diameter

Ø700mm

Taking-up machine

PN800

III Line buildup & details
3.1 Pay-off stand
- Passive driven
- Suitable copper/aluminum rod reel OD: 1700mm
- Suitable rod reel weight: 3500kg

3.2 Flattening machine
- Active driven, motor power 37kW, inverter control
- Rod positioning mould: carbide alloy, diameter 20mm
- Flattening roller diameter: 350mm
- Flattening roller material: 20Cr, tempered & hardened
- Flattening speed: 62m/min

3.3 Tensioning frame: for balancing wire between flattening machine and the later drawing machine.
|flat wire drawing machine| flat wire drawing machine| flat wire drawing machine| flat wire drawing machine| flat wire drawing machine|
3.4 Main drawing machine

- Drawing wheel numbers: 3 (excluding dividing wheel)
- Drawing wheel diameter: 700mm
- Drawing wheel material:45Cr forged material, surface quenched
- Main driving motor power: 75kW, inverter control
- Max. drawing dies: 3
- Mechanical gear ratio of each die: 1:1.15
- Recommended elongation percentage: 18~22%
- Max. drawing speed: 120m/min

3.5 Length counting device

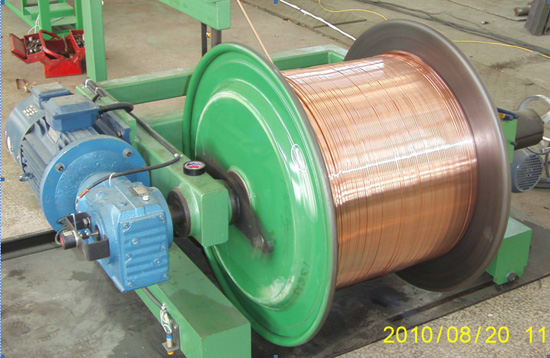

3.6 Take-up stand
- Code: PN800
- Take-up tension is adjustable on real time
- Take-up motor: moment motor
- Take-up disk outer diameter: 800mm
- Conductor ordering method: screw rod
- Conductor ordering stroke: 50mm
- Take-up disk center hole: Ø80mm or as required

3.7 Electric control system
- Flattening machine, drawing machine and take-up stand can work separately or be linked together.
- There is length alarming function alarming whenever reaching pre-set length

3.8 Wire pointing & stringing machine
- Separate machine for pointing & stringing wires into drawing dies
- Pointing range: Ø5- Ø14mm
- Min. thickness: 1mm
- Rotation speed: 40r/min
- Roller diameter: Ø150mm
- Driving motor power: 5.5kW

IV Main configuration
- Main motors: Siemens brand from joint venture in China
- Inverter: Mitsubishi from Japan
- Reducers: Tailong (No.1 brand from China)
- Main electric components: Schneider from joint venture in China
|flat conductor drawing machine| flat conductor drawing machine| flat conductor drawing machine| flat conductor drawing machine|
