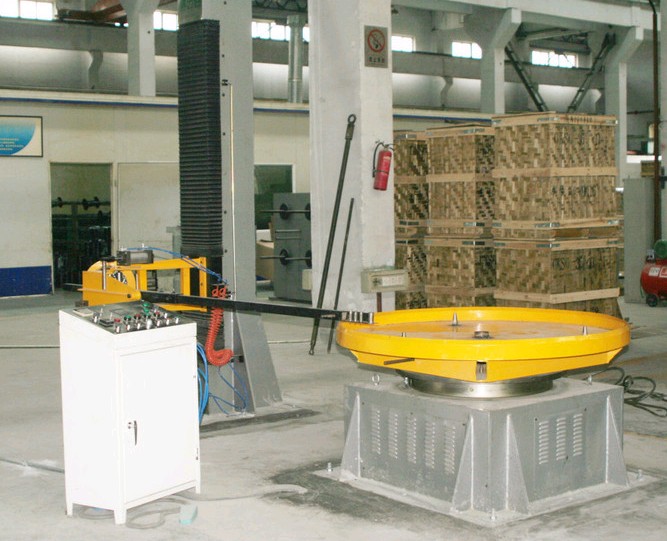

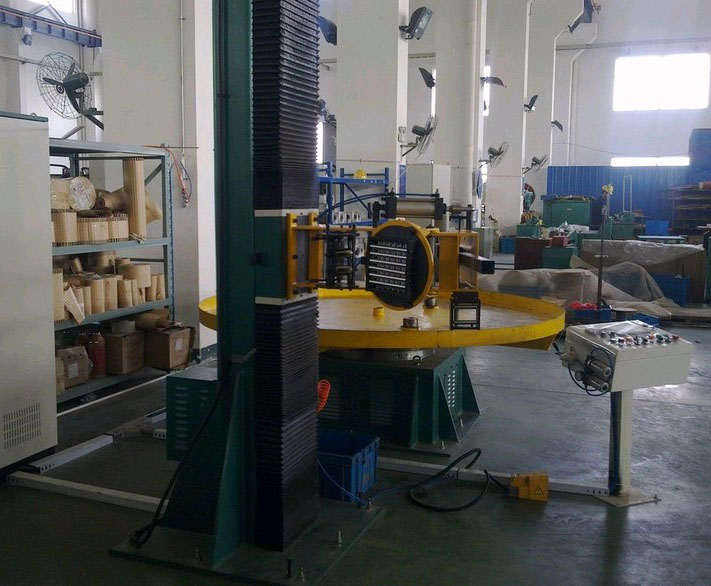

Vertical reactor coil winding machine

Vertical reactor coil winding machine Vertical reactor coil winding machine Vertical reactor coil winding machine
Product name:Vertical reactor coil winding machine
Item:7-3
Details:

Description
This machine is special for winding coils for reactors. Its wiring device is servo drive, adopts high precision linear guide and screw. The servo wiring device can ensure precision requirement of ordering wire and yarn.
Chuck is driven by advance vector inverter and the torque is constant, ensuring winding quality.
PLC control, with power-failure memberizing function.

Specifications

Item

HDL-10T

HDL-5T

Wire diameter

0.79-4.67mm

0.79-4.67mm

Coil height

3000mm

2800mm

Max. OD of coil

3000mm

2000mm

Max. weight of coil

10000kg

5000kg

Quantity of wire/yarn

1-6 pcs

1-6 pcs

Wiring pitch

0-400mm

0-600mm

Chuck rotating speed

0-25r/min, continuous adjustable

0-30r/min, continuous adjustable

Turn counter

Electronic/mechanic dual counting, forward/reverse dual direction counting

Winding braking force

128kg·m(Max)

64kg·m (Max)

Wiring braking force

32N·m

32N·m

Dimension

5000mm×3500mm×4200mm

4800mm×3000mm×4000mm
