  Products


Vacuum Annealing Furnace

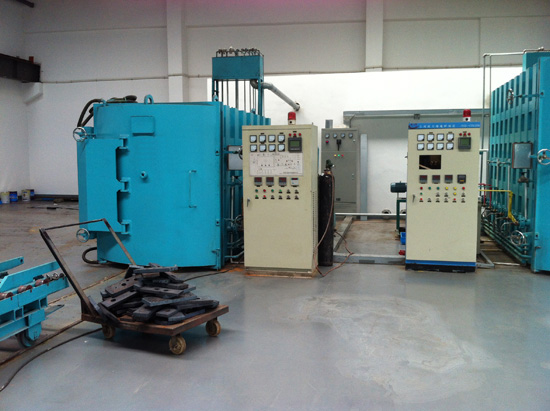

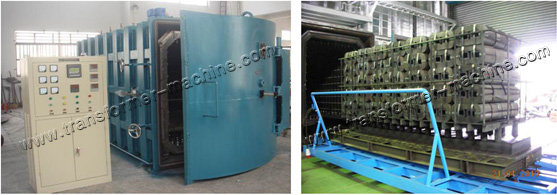

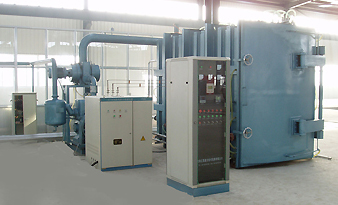

Vacuum Annealing Furnace Vacuum Annealing Furnace Vacuum Annealing Furnace
Product name:Vacuum Annealing Furnace
Item:5-1
Details:

Description:
This furnace is mainly for annealing different kind of wound CRGO cores for transformers, to release inner stress and decrease iron loss.

Advantages:
-This furnace is horizontal and rectangular type, equipped with front-load trolley, convenient for loading & unloading workpieces, avoiding trolley interfering heating elements;
- Heating elements located more reasonable; heating temperature inside is more equal; rectangular furnace decreases idle space, saves evacuating duration, decreases nitrogen consumption.
- Equipped with heating uniform-temperature fan, cut down relative processing time and increase productivity.
- Heating element is made from nickel chromium alloy, longer life
- Equipped with PID temperature control instruments, very good temperature uniform inside the furnace, good for annealing result.
- The whole annealing progress is control by PLC, full automatic; Equipped with industrial computer, progress and cycle curve can be displayed, process data can be saved or printed.
|wound core annealing furnace| wound core annealing furance| wound core annealing oven| wound core annealing ovean|
Specifications:

No.

Item

Data

1

Inside effective size (L x W x H)

2200 x 1000 x 1100

2

Max. load capacity

about 5T

3

Max. heating temperature

950ºC

4

Working temperature

780~820ºC

5

Heating power

120kW

6

Temperature control method

PLC

7

Temperature control precision

±2ºC

8

Temperature evenness inside

±5ºC (in the later stage of temperature keeping)

9

Furnace surface temperature rise

35ºC+ ambient temperature

10

Cooling fan motor power

7.5kW

11

Ultimate vacuity

20Pa

12

Working vacuity

400Pa

13

Vacuuming speed

≤30min (from atmosphere to vacuity 300~900Pa

14

Vacuum leakage speed

50Pa/h

15

Cooling water consumption

10~12t/h (water pressure 0.4MPa)

|vacuum annealing oven|vacuum annealing oven| vacuum annealing oven| vacuum annealing oven| vacuum annealing furnace| vacuum annealing furnace|
