Description

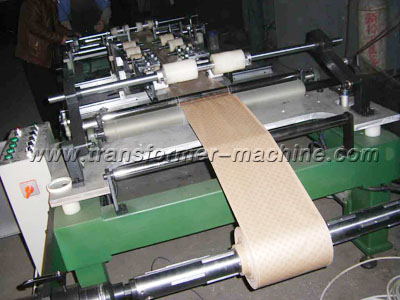

This machine is mainly for folding interlaminar insulation paper used in transformer windings. After wound in the coil, such folded insulation paper will form the end-insulation, thus increases mechanical intensity, winding efficiency of coil and decreases the material cost.
This machine is similar to American machine, either in structure or folding principle, high productivity and reliability.
Specifications
- Insulation paper raw roll: inner diameter 76mm, outer diameter less than 400mm
- Folded paper roll: inner diameter 76mm, outer diameter less than 400mm
- Width of raw roll: 160-800mm
- Thickness of paper: 0.10-0.21mm
- Folding width: 6mm-10mm
- Folding layers: max. four layers
- Folding speed: 0-20m/min, inverter controlled, adjustable
- Folding blade: outer diameter 84mm, 8 pieces
- Main driving motor power: 1.1kW, 3 phase, 380V, 50Hz
- Air consumption: 0.1m3/min
- Machine occupied area: 5m x 2m x 1.1m

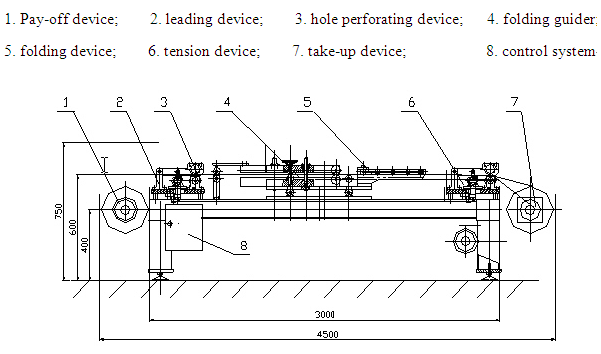

Buildup
