Dielectric strength test meter

Dielectric strength test meter
Product name:Dielectric strength test meter
This is a special for test dielectric strength of insulation oil.

- Automatic magnet mixing
- Testing time, mixing duration and stewing duration can be changed at any moment
- After every dielectric punctured, there are sound indications; If no need, sound can be shut off.
- Automatic detecting (automatic reset when start the meter)
-LED displaying
- Automatic test: test 6 times continuously, automatic average; then type out test data and average value.
- Test data can be stored for long time

- Electric power: AC 220V±10%, 50Hz±5%
- Measuring range: AC 0~80kV
- Limit current: 5mA
- Data storing: 360 units, one unit with 9 data (9 times)
- Measuring precision: 1.5%
- Voltage regulating speed: 2.5kV/s ±10%
- Pre-set defaults:
Dielectric puncture: 1~9 times
Mixing duration: 0~599 s
Stewing duration: 0~599 s
- Ambient condition: +5~40℃
- Weight: 28kg
- Dimension: 415 x 315 x 315mm

Related Products :
Protective Relay Test Instrument
Protective Relay Test Instrument
Generator Resonant Withstand Voltage Test System
Generator Resonant Withstand Voltage Test System

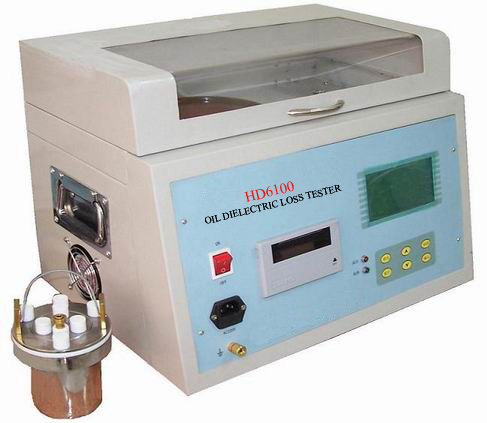

insulation oil dielectric loss tester
insulation oil dielectric loss tester
Impulse voltage generator
Impulse voltage generator

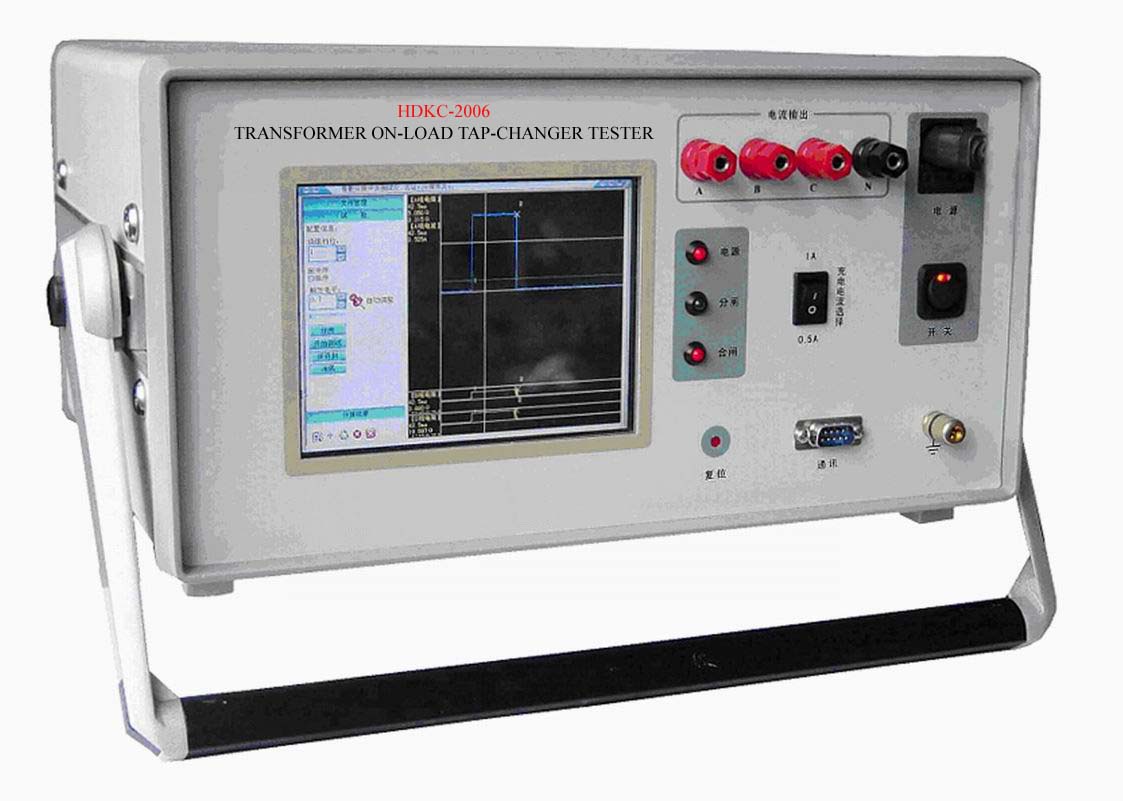

transformer on-load tap-changer tester
