Corrugated tank fin wall forming machine

Corrugated tank fin wall forming machine Corrugated tank fin wall forming machine Corrugated tank fin wall forming machine Corrugated tank fin wall forming machine
Product name´╝ÜCorrugated tank fin wall forming machine
Item´╝Ü4-1
Details´╝Ü

Video link of corrugated tank fin wall forming machine
Description:
This machine is special for forming corrugated tank fin walls automatically. It can form 4 units one time (four walls of one tank). The units and fin numbers can be preset in PLC.
Ribs can be added according to requirement.

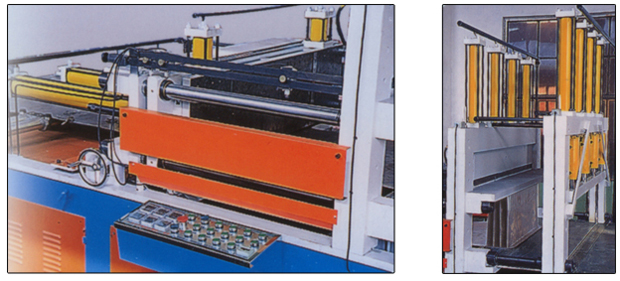

|corrugated tank machine|corrugated tank machine|corrugated tank machine|corrugated tank machine|corrugated tank machine|
Buildup:
- Decoiler: mechanical expansion, passive, capacity 6T.
- Hydraulic station for folding: max. pressure 30MPa, max. flux 100L/min, pump motor 7.5kW; main hydraulic components are from Taiwan.
- Main forming unit: hydraulic driven, automatic forming
- Shearing device: hydraulic driven to cut formed fins, automatic
- Run-out table: manual, 3m long
- PLC control system: PLC, inverter, touch screen, encoder, are Mitsubishi from Japan; electric components are Schneider brand, from joint venture in China.

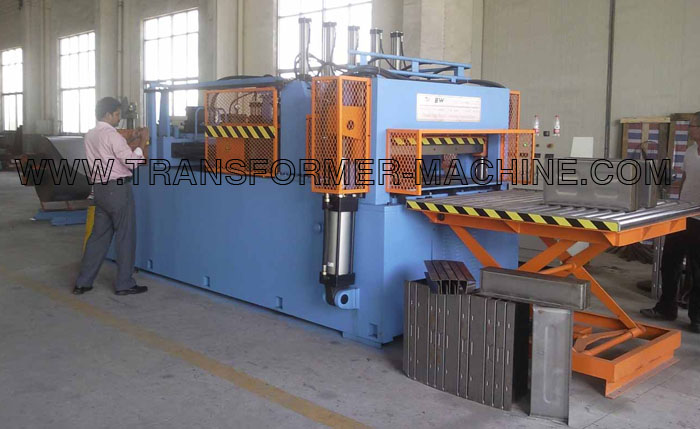

|transformer corrugated tank machine| transformer corrugated tank machine| transformer corrugated tank machine| transformer corrugated tank machine|
Specifications:

Item

Data

Width of raw steel coil

300~1500mm

Thickness of steel

1~1.5mm

Height of fin

100~400mm

Pitch between fin

45~80mm

Space inside fin

4-6mm

Forming speed

3 fins per minute

Dimension

5500 x 1600 x 2200mm

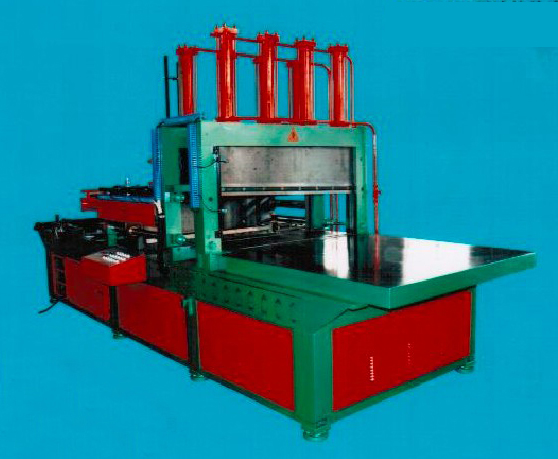

|corrugated tank fin wall machine|corrugated tank fin wall machine| corrugated tank fin wall machine| corrugated tank fin wall machine| corrugated tank fin wall machine|

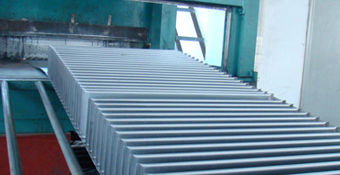

Photos of the trial sample:

|transformer tank machine| transformer tank machine| transformer tank machine| transformer tank machine| transformer tank machine|
