Transformer corrugated tank fin welding machine

Transformer corrugated tank fin welding machine Transformer corrugated tank fin welding machine Transformer corrugated tank fin welding machine Transformer corrugated tank fin welding machine

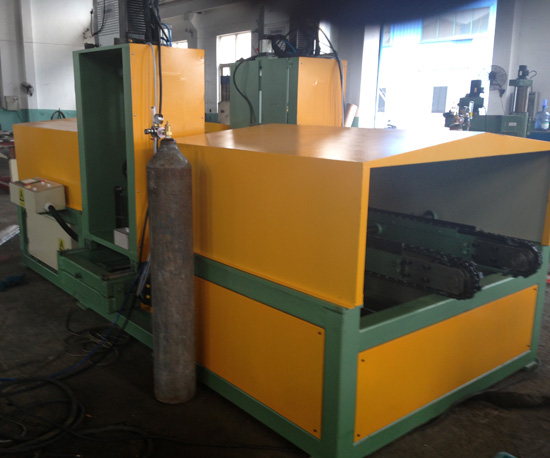

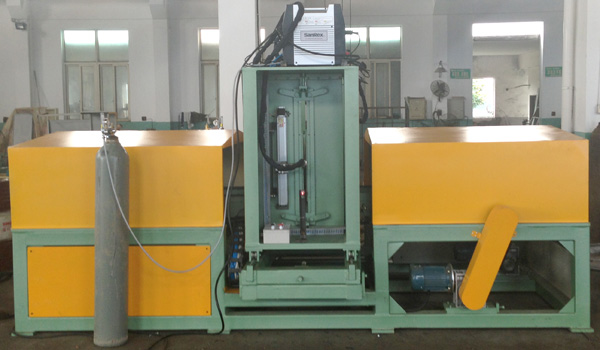

Product name:Transformer corrugated tank fin welding machine
Item:4-3
Details:


Video Link of transformer corrugated tank fin welding machine
I Summarize

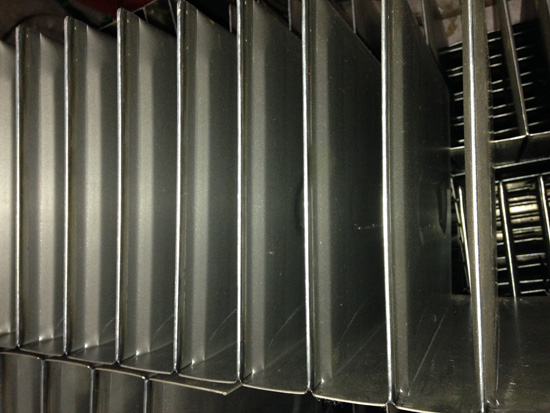

This is specially for welding the transformer corrugated tank, controlled by PLC, cylinder clamping to ensure the welding quality. Automatic feeding, welding by one time.

II Technical data

1)      Rated capacity: 0.15kw

2)      Pressure: 0.2-0.8Mpa

3)      Suitable fin height: 80-400mm

4)      Suitable fin width: 400-1250mm

5)      Suitable fin thickness: 1-1.5mm

6)      Power supply: 380V, 3phase, 50Hz

III Main configuration

1)      Ball screw and straight guide is ABBA from Taiwan.

2)      Pneumatic element is MINDMAN from Taiwan.

3)      PLC electric control system is VIGOR from Taiwan.
