Product name:AGP casting machine
Item:5-11
Details:


Video Link of automatic pressure gelating machine

I Description

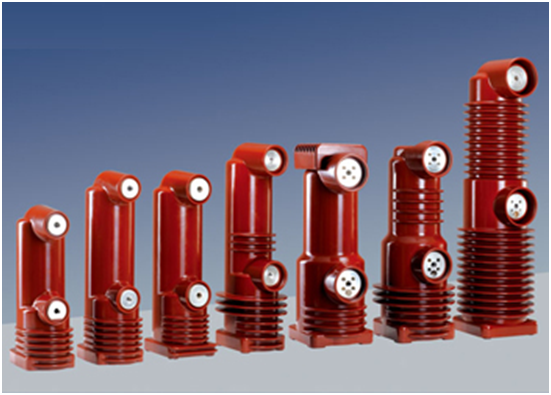

APG is a special technology for casting high voltage electric components from epoxy resin. It can reduce the casting duration to dozen minutes from dozen hours by comparing to conventional vacuum casting method. It can control exothermic effect well, good for compensating shrinkage by curing reaction and so casted products have good dimension stability and high mechanical strength. So, this APG technology is especially suitable for casting pole rod of vacuum breaker, cover of SF6 breaker and those products of thin-wall, complicate or multiple side core pulling.

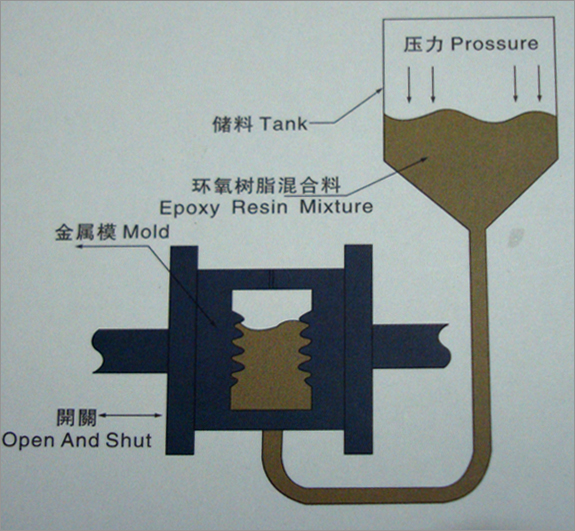

 APG technological process includes three sections: pre-mixing, automatic pressure gelating and curing.

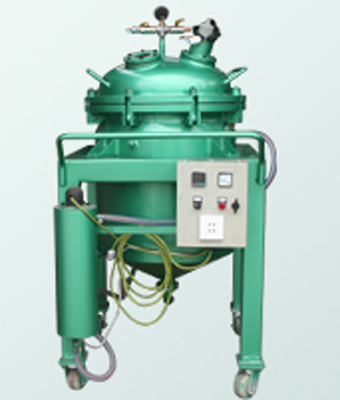

The complete plant for APG process need moulds, pre-mixing device, movable injection pressure vessel, hydraulic pressure gelating machine, air compressor, curing oven, etc.
There are single-station and double-station APG epoxy resin casting machines.

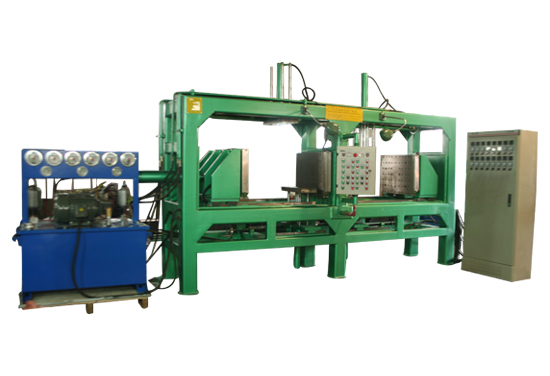

WHAG-882 is in double-station, fixed mould plates are fixed on in the middle of the frame. When one station is under working, another station can be stopped for taking out finished product. Thus raises productivity efficiency.
II Main technical data of WHAG-882 APG casting machine:

No.

Item

Data

1

Automatic pressure gelating machine





Die assembly plate dimension (heating plates)

800 x 800mm

Die clamping force

200kN

Die clamping speed

3.2m/min

Die opening speed

5m/min

Die clamping distance (distance between heating plates)

200-1200mm

Min. distance between upper core pulling and die plate center

150mm

Min. distance between lower core pulling and die plate center

150mm

Upper and lower die assembly plate dimension

520x240mm

Hydraulic station motor power

7.5kW

Hydraulic pressure

30MPa

Total heating power

30kW

Body tilting degree

0-7°

Outline dimension (L x W x H)

6630x1350x3195mm

Weight

about 4000kg

2

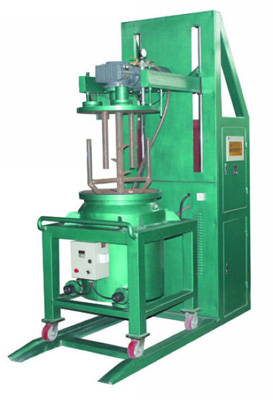

Pre-mixing device & movable vessel





Outline dimension

1830 x 850 x 2500mm

Mixing motor power

3kW

Mixing head elevating (hydraulic driven) motor power

0.75kW

Vacuum pump speed

8L/S

Vacuity

0.5mbar

Vacuum pump motor power

1.5kW

Capacity of mobile pressure vessel

100L

Heating method of pressure vessel

heat oil

Heating power

1.5kW

Note: Single-station and other size APG casting machines are available.
III Main configuration

1) Hydraulic components (valves, seals & pump): famous brand from Taiwan
2) PLC + touch screen: Mitsubishi from Japan
3) Main electric components: Schneider brand
