Vertical Taping Machine

Vertical Taping Machine Vertical Taping Machine Vertical Taping Machine

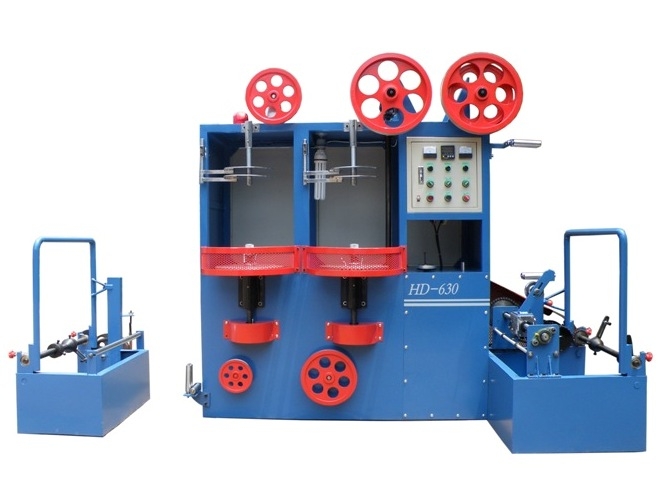

Product name:Vertical Taping Machine


This machine is special for taping insulation tapes to flame-retardant cables or normal copper wires.

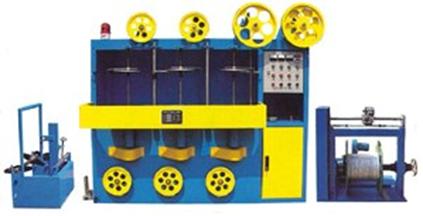

There are two taping heads and so two layers insulation tapes will be wrapped. There are also single-layer machine and triple-layer machine.


l  Suitable material: paper tape, fabric tape, PP or PVC tape, MICA tape, aluminum tape, etc., tape width 4-10mm

l  Taping pitch: continuous adjustable

l  Suitable wire/cable diameter: 0.6-15mm

l  Pay-off reel diameter: 400-630mm

l  Pay-off device: manually adjust tension

l  Insulation tape reel diameter: 250-300mm

l  Take-up reel diameter: 630mm

l  Driving motor power: 1.5kW, inverter control

l  Taping speed: 2500 rpm

l  Take-up device is equipped with friction clutch

l  Dimension of pay-off device: 500 x 900 x 1000mm

l  Dimension of main machine & take-up device: 2200 x 1100 x 1900mm

l  Total weight: 800kg
