Product name:Paper Taping Machine
Item:8-7
Details:

Video Link of conductor paper taping machine
I Description:
The exact line configuration will be based on required number of conductors, taping layers and reel sizes.
It can be single conductor taping or multi-conductor taping.
For single conductor, we can provide machines taping 4 layers, 8 layers, 12 layers, 16 layers or more.
For multi-conductor, we can provide machines for 2-conductor, 3-conductor. Every conductor will be taped separately and then taped together. Taping layers can be as per required.

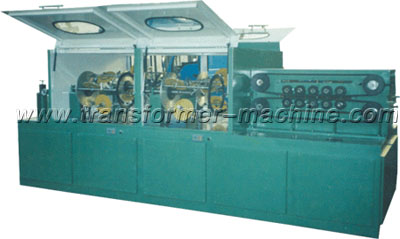

|insulation paper taping machine|insulation paper taping machine|insulation paper taping machine|insulation paper taping machine|insulation paper taping machine|
II Buildup:
1) Pay-off stands;
2) Main machine;
3) Take-up stand;
4) Control system

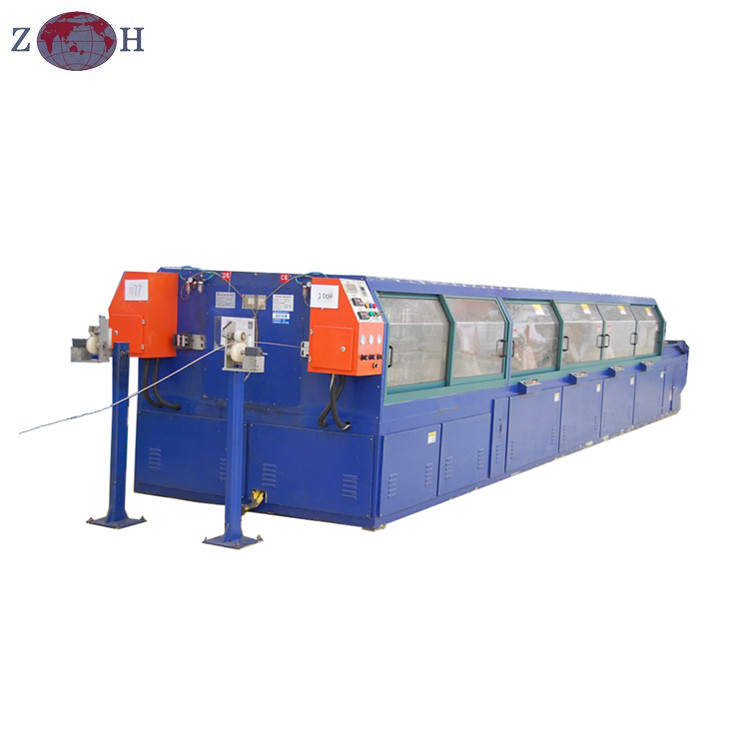

|insulation paper wrapping machine|insulation paper wrapping machine|insulation paper wrapping machine|insulation paper wrapping machine|insulation paper wrapping machine|
III Specifications:
1) Conductor specification: copper/aluminum flat conductor
    Width: 5~20mm
   Thickness: 1~16mm
   Section area: 10~200mm2
   Width/thickness ratio:0.4~12
2) Insulation paper specifications:
  Thickness: 0.040~0.125mm
  Width: 10~30mm
3) Taping head
  -Taping pitch: 8~30mm, stepless adjustable
  -Taping pitch tolerance: ±0.4mm
  -Taping tension: mechanically automatic adjusting, constant tension
  -Rated rotating speed: 800rpm
  -Working speed: 600rpm
  -Paper disc diameter: OD 330mm, ID 75mm
  -Numbers of paper disc on each taping head: 3 or 4 pcs
  -Paper breaking sensor: phototube detecting breaks, automatic stop
4) Caterpillar towing device: thicker synchronized gear type belt, ensuring even line speed
5) Full enclosing cover: avoiding dust taped into conductors
6) Take-up: moment motor drive, constant-tension taking-up, slick rod wiring, take-up disk motorized elevating.
Note: Conductor paper taping machine is customerized according to customer's requirement.

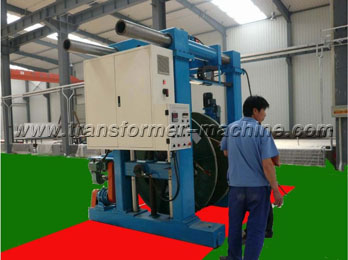

|insulation paper taping machine|insulation paper taping machine|insulation paper taping machine|insulation paper taping machine|insulation paper taping machine|insulation paper taping machine|
IV More photos of conductor paper taping machine:




conductor paper taping machine| conductor paper taping machine| conductor paper taping machine| conductor paper taping machine|
←[Previous:8-2] [Next:8-6]→
