Vertical Coil Winding Machine |
|
|
| Product name：Vertical Coil Winding Machine |
| Item：2-4 |
| Details： |
| |
Description

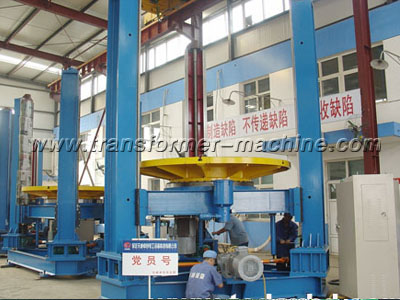

This machine is special for winding coils for high voltage and super high voltage transformers.
There are pit type and ground type vertical winding machines, chosen based on workshop height.
The chuck can raise/drop according to the height of coil and thus to keep the working height.
This machine is inverter control, stable start-up, low noise and easy operate.
This machine is equipped with electronic counter which can reduce turns when reversing. The machine can automatically stop at pre-set turns.|vertical transformer coil winding machine| vertical transformer coil winding machine| vertical coil winding machine| vertical coil winding machine|

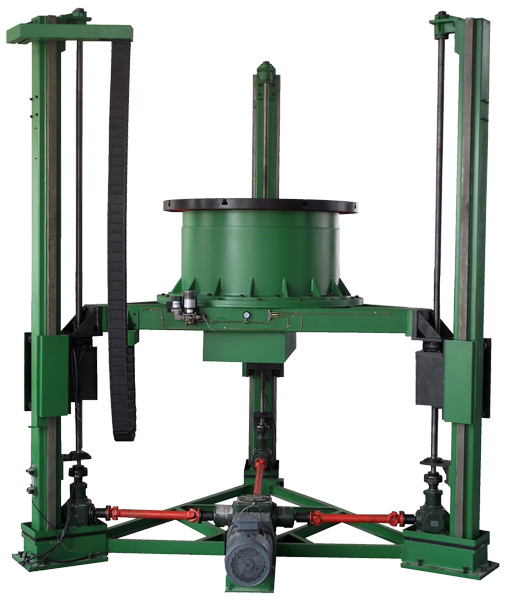

Machine buildup
1. chuck rotating mechanism
2. Chuck elevating mechanism
3. Active covering plate
4. Wire tension device 5. Wire pay-off device|vertical transformer coil winding machine| vertical transformer coil winding machine| vertical coil winding machine| vertical coil winding machine|
Specifications
|vertical transformer coil winding machine| vertical transformer coil winding machine| vertical coil winding machine|
|
Item
|
LR-10
|
LR-20
|
LR-25
|
LR-30
|
|
Chuck diameter mm
|
ф1500
|
ф2900
|
ф2200
|
ф2800
|
|
Max. turning diameter mm
|
ф2200
|
ф3000
|
ф3400
|
ф3500
|
|
Chuck elevating stroke mm
|
2200
|
3000
|
3000
|
3500
|
|
Max. bearing weight T
|
10
|
20
|
25
|
30
|
|
Max. torque N·m
|
9000
|
15000
|
16500
|
23000
|
|
Chuck rotating speed r/min
|
0～10
|
0～10
|
0～10
|
0～10
|
|
Chuck elevating speed m/min
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Covering plate stretching speed m/min
|
2.5
|
2
|
2.5
|
2.5
|
|
Covering plate stretching range mm
|
ф680～ф2232
|
ф1040～ф3040
|
ф1800～ф3600
|
ф1800～ф3600
|
|
Dimension mm
|
5086×4586×4263
|
6500×6000×5020
|
6856×6356×5020
|
6856×6356×5020
|
