CNC Miniature Toroidal Coil Winding Machine

CNC Miniature Toroidal Coil Winding Machine CNC Miniature Toroidal Coil Winding Machine CNC Miniature Toroidal Coil Winding Machine CNC Miniature Toroidal Coil Winding Machine

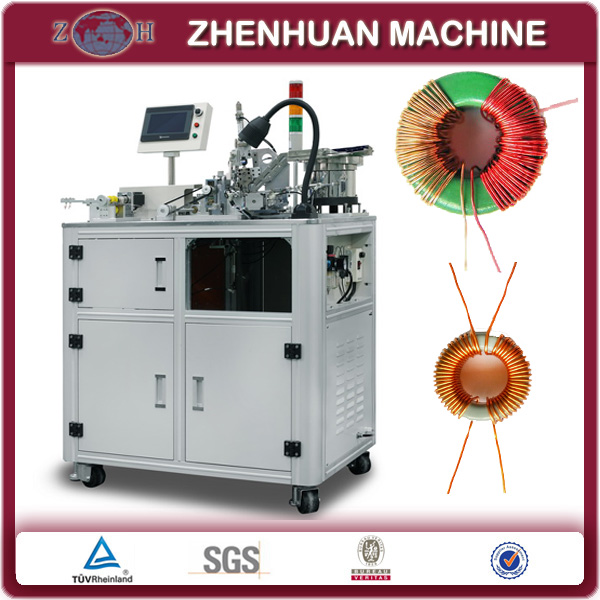

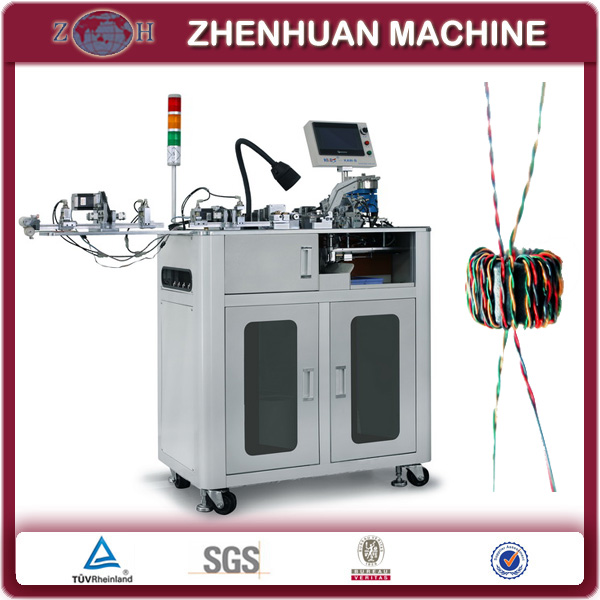

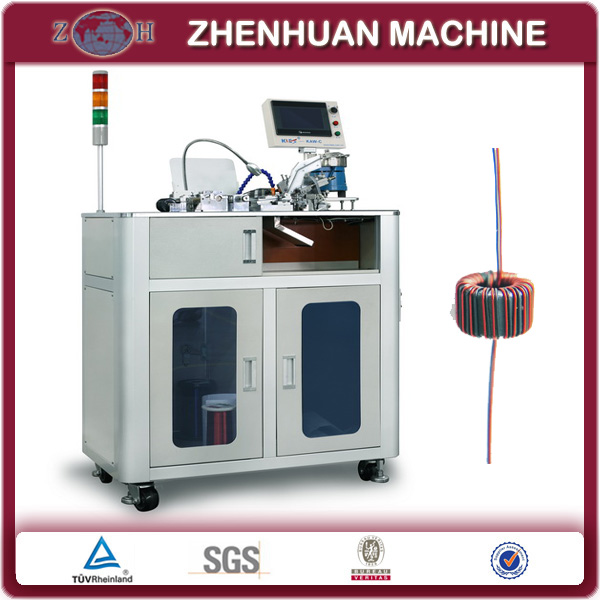

Product name:CNC Miniature Toroidal Coil Winding Machine
Item:2-19
Details:

 video link of CNC miniature toroidal coil winding machine
I Description of CNC miniature toroidal coil winding machine

This machine is for winding 4-wire twisted to super miniature toroidal cores.

This is a full automatic machine, auto core feeding, wire accumulating, twisting, winding, finished coil unloading.

There are also other miniature toroidal coil winders for different wire winding:
miniature toroidal coils
II Main features of CNC miniature toroidal coil winding machine:

- Separate accumulating speed & length control

- Separate winding speed & turns control

- Optical fibre sensor plus dual digital displayer for turns controlling

- Variable winding pitch, programmable

- Servo motor drive, high precision, stable speed switching

- Full automatic, continuous working, many machines with few operators

III Main technical data of CNC miniature toroidal coil winding machine:

Item

Data

Miniature core ID

1.27~2mm

Miniature core OD

2~4mm

Miniature core height

0.65~3mm

Suitable wire diameter

0.07 ~0.127mm

Winding method

4 wires twisted

Winding turns

9~16

Continuous production delay time

Less than 2%

Winding speed

4~6s per piece

Percent of pass

>99.5%

Machine dimension

About 850 x 550 x 1400mm

Machine weight

About 450kg

We can specially design and manufacture CNC toroidal coil winding machines according to your mini magnetic core size and winding wire detailed requirements, etc.
