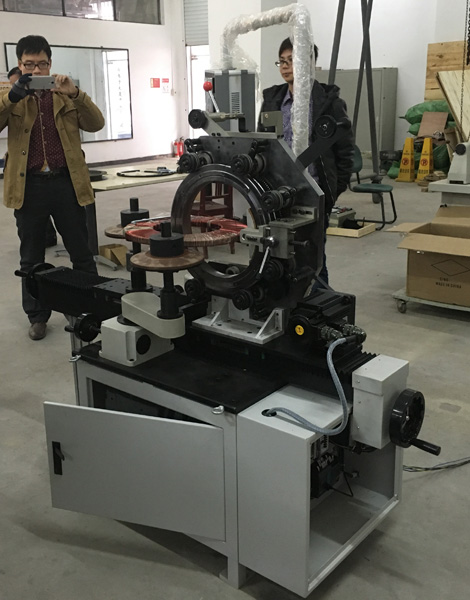

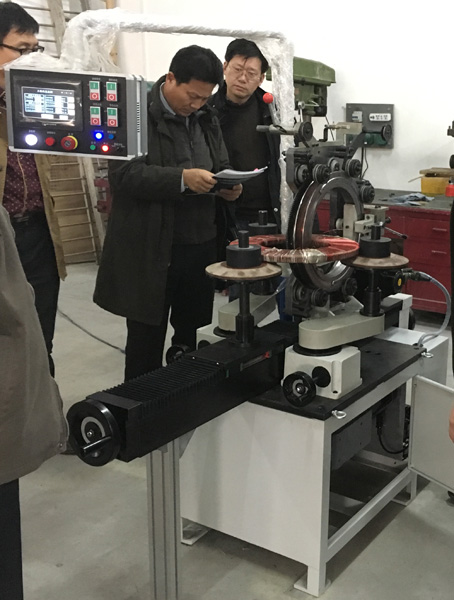

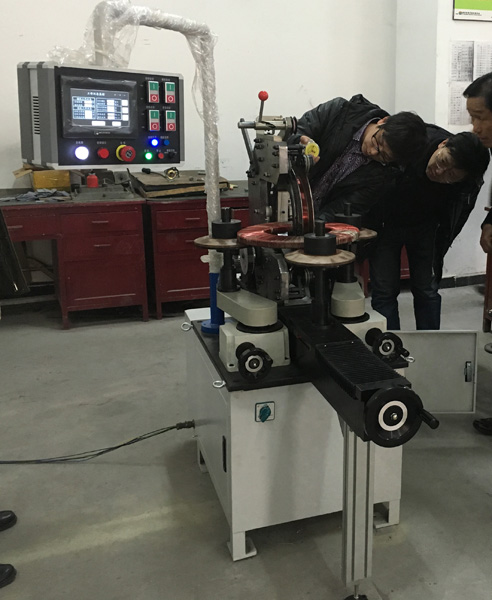

Current Transformer Toroidal Coil Winding Machine

Current Transformer Toroidal Coil Winding Machine Current Transformer Toroidal Coil Winding Machine Current Transformer Toroidal Coil Winding Machine Current Transformer Toroidal Coil Winding Machine
Product name:Current Transformer Toroidal Coil Winding Machine
Item:2-9
Details:


I Description of current transformer toroidal coil winding machine
This machine is special designed for winding coils on toroidal wound cores for current transformers.

II Main features of current transformer toroidal coil winding machine
- PLC control, touch screen operation
- Center distance of winding head is adjustable, speed of core and wire winding are adjustable automatically
- Wire tension can be adjusted mechanically
- Parameters can be pre-set on the touch screen, such as winding turns, wire diameter, ID of core, OD of core, height of core, turns in magazine, etc.
- Touch screen can display real conditions during winding
- Can be two wires parallel wound.
- Spiral pitch can be pre-set and fine adjusted during winding
- Winding head and magazine are designed to be quick exchangeable.
- Tapping turns can also be pre-set.
- With power-off memory function
|current transformer coil winding machine|current transformer winding machine|current transformer coil winding machine|

III Main parameters of current transformer toroidal coil winding machine

Item

YW-400C

YW-600

YW-800

YW-1200

YW-1500

Suitable wire gauge

0.5-2.0mm

0.7-2.5mm

0.7-2.5mm

1.0-3.0mm

1.0-3.0mm

Max. coil OD.

400 mm

600 mm

800 mm

1200 mm

1500 mm

Min. coil ID.

100 mm

200 mm

300 mm

400 mm

500 mm

Max. coil height

140 mm

200 mm

280 mm

280 mm

300 mm

Ordering pitch

1~8.0mm

Winding turns

1-99999±1

Main spindle speed

0-100rpm

Main motor power

1.0-1.5kW (configured according to final wire gauge and accumulating length)

Core driving motor power

Configured according to final weight of core & coils

Max. bearing weight

50kg

200kg

300kg

500kg

800kg

Note: Above parameters can be customized.
|toroidal coil winding machine| toroidal coil winding machine| toroidal coil winding machine|
IV Main configuration of our current transformer toroidal coil winding machine
- Touch screen: Weinview from Taiwan
- PLC and control module: Fatek from Taiwan
- Servo motor and driver (for core rotating): Estun from Sino-American joint venture
- Step motor and driver (for wire winding): Start from sole-funded American enterprise in China
- Switch power: from Taiwan
|current transformer coil winding machine|current transformer winding machine|current transformer coil winding machine|
