Transformer Core Stacking Table

Transformer Core Stacking Table Transformer Core Stacking Table Transformer Core Stacking Table Transformer Core Stacking Table
Product name:Transformer Core Stacking Table
Item:1-12
Details:


Description:

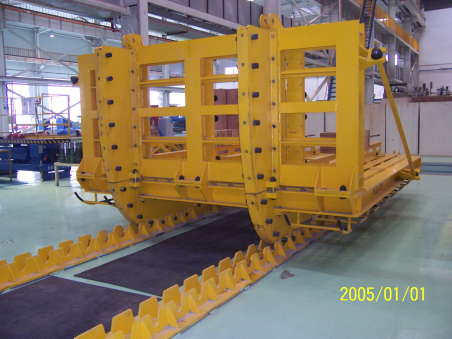

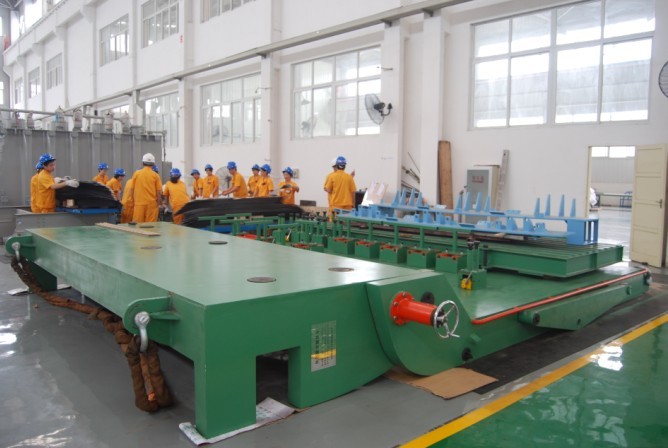

Core stacking table is for huge transformer cores assembling & mounting.

It is equipped with adjustable profile modeling. Operator can position cores according to the profile modeling, thus increase laminating precision and speed.

Longitudinal movement is via linear guide; Rotation is driven by hydraulic.

For bigger capacity, the structure will be different,

Specifications

Item         Model

TXD-2

TXD-3

TXD-5

TXD-10

Max. core weight             T

2

3

5

10

Max. core height             mm

1000

1600

1800

3000

Max. core width             mm

1200

1800

2000

3200

Laminating precision         mm

0.1-0.2

Working height              mm

1000

Overturning degree           °

0~90

Overturning duration      seconds

80

Hydraulic system pressure    MPa

30

Hydraulic working pressure   MPa

15

Pump motor power           kW

2.2

2.2

3

4


Note: We can provide core stacking table for max. 250T.
