Silicon Electrical Steel Straight Cutting Machine

Silicon Electrical Steel Straight Cutting Machine Silicon Electrical Steel Straight Cutting Machine Silicon Electrical Steel Straight Cutting Machine Silicon Electrical Steel Straight Cutting Machine
Product name:Silicon Electrical Steel Straight Cutting Machine
Item:1-16
Details:

video of high speed electrical silicon steel rectangular cutting machineVideo of silicon electrical steel straight cutting machine video of high speed silicon steel straight cutting machine with hole punch
 I Description
This machine is specially designed for cutting silicon electrical steel coils into strips for transformer cores, welding machine cores and reactor cores.
JN-3002S silicon electrical steel cutting machine is full servo driven, high speed cutting for max. silicon electrical steel strip width 300mm. One minute can cut 80~150 pieces strips.
Inverter controlled motorized belt can work with cutting. Only a certain preset pieces are finished and stacked, this belt will move. |Silicon Electrical Steel Straight Cutting Machine|silicon electrical steel straight cutting machine| silicon electrical steel straight cutting machine|
II Machine buildup

- Inverter-controlled mechanical expansion decoiler

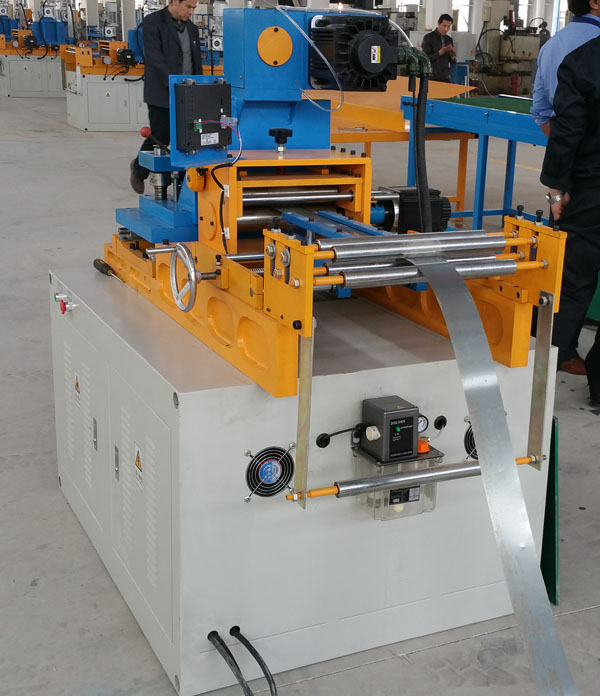

- High speed servo feeding device

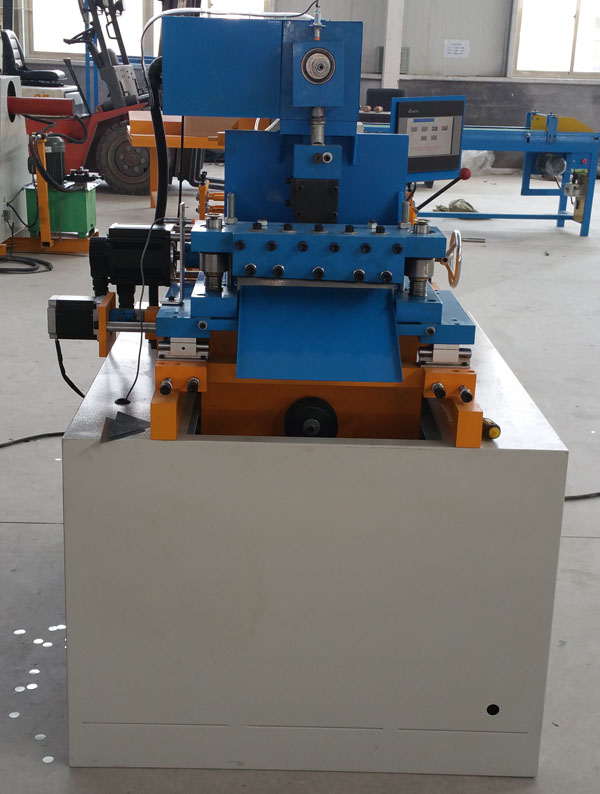

- Servo drive punching device

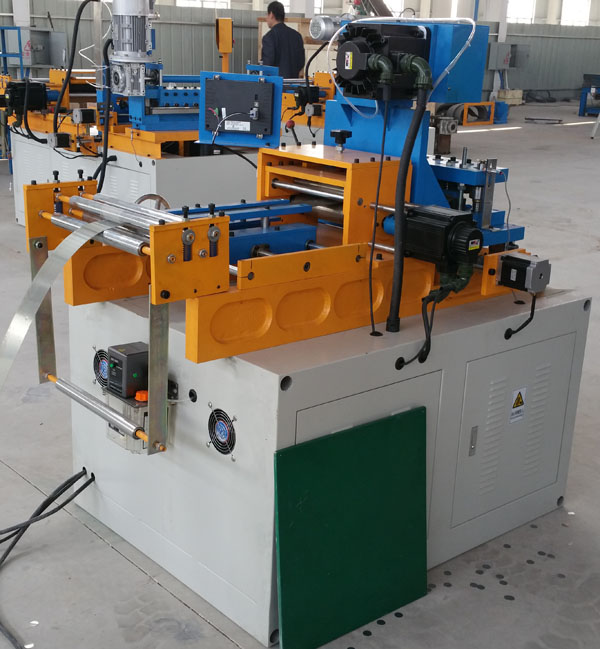

- Servo drive straight cutting device
- Motorized transmitting belt
- PLC control system  |Silicon Electrical Steel Straight Cutting Machine|silicon electrical steel straight cutting machine|
III Special features:

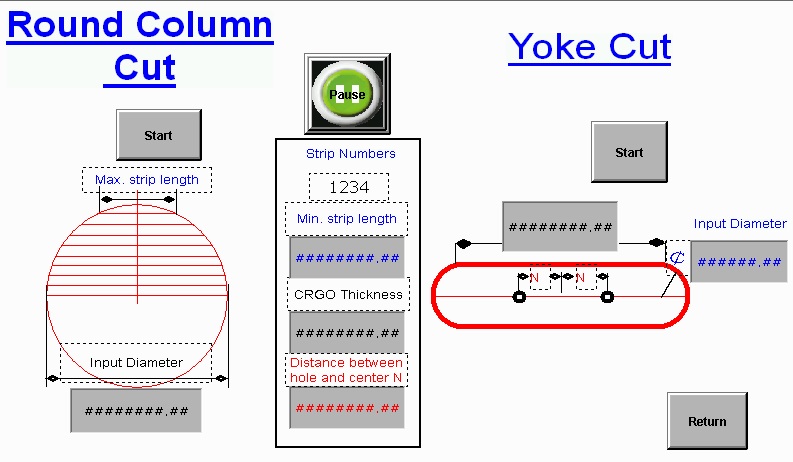

- Special round column cutting function:
Round cloumn cutting by silicon electrical steel straight cutting machine

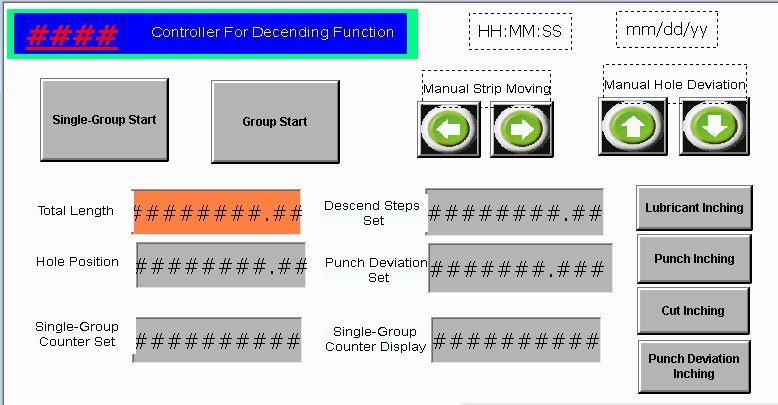

- Special descending cutting function for reactor core cutting or gap core cutting:
descending cutting function of silicon electrical steel straight cutting machine
|Silicon Electrical Steel Straight Cutting Machine|silicon electrical steel straight cutting machine| silicon electrical steel straight cutting machine|
IV Main technical data:

No.

Item

Data

1

Type Code

JN-3002S

2

CRGO thickness

0.23-0.6mm

3

CRGO coil width

30-300mm

4

Cutting length

1-999999mm

5

Cut-to-length tolerance

+/-0.02mm

6

Hole position tolerance

+/-0.02mm

7

Hole numbers

0-12

8

Burr height

Less than 0.02mm

9

Feeding speed

Max. 100m/min

10

Cutting speed

80~150 pieces per minute

11

Punching die

Carbide alloy

12

Cutting blade

Carbide alloy

13

Die & blade life

More than 1.2 million times before grinding

14

Servo motors

Delta from Taiwan
