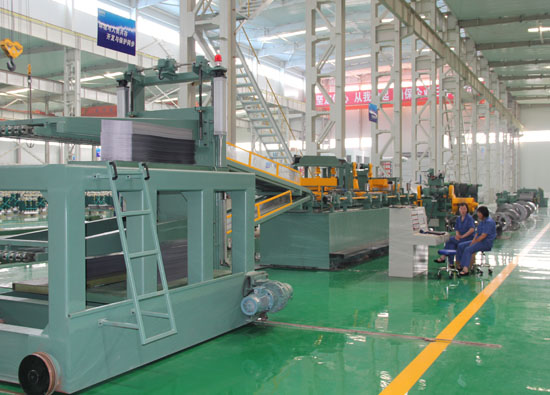

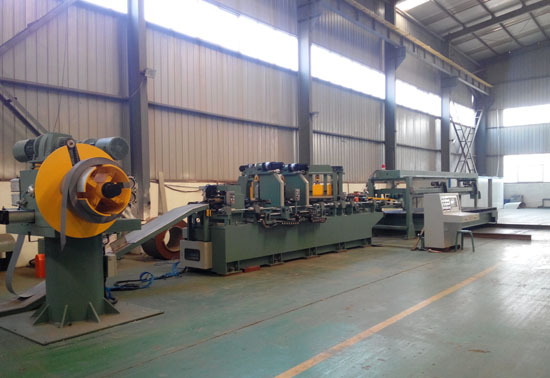

Full automatic CRGO cut-to-length line

Full automatic CRGO cut-to-length line Full automatic CRGO cut-to-length line Full automatic CRGO cut-to-length line
Product name:Full automatic CRGO cut-to-length line
Item:1-4
Details:

Description

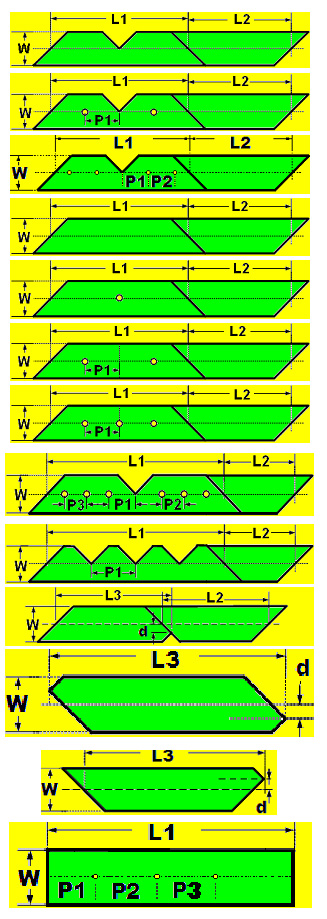

This line is digital control cut-to-length, servo motor feeding; By choosing CRGO strip shape on the touch screen, input dimension, the line will automatically punch and cut strips. There are “two punch + two cut” line and “one punch + two cut” line. Strip shapes can be as below:


Main features
--High precision grating inspection, Siemens servo motor and controller, Omron PLC and industrial computer control system accomplish high precision length feeding, ensure the cutting accuracy; max. feeding speed 240m/min, starting/braking time less than 100ms. 

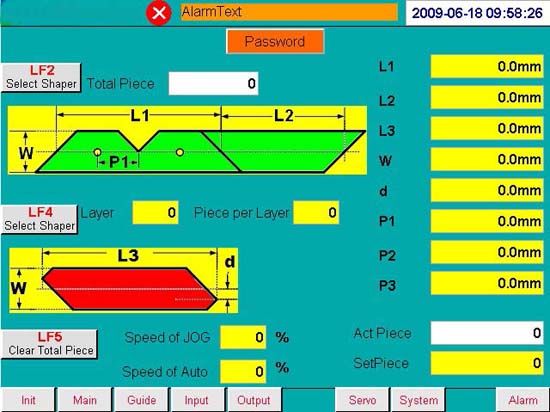

--Very intuitionistic Windows graphic interface operation system; By keyboard, operator can choose strip type, rectify parameters, change position coordinate, examine production history records, etc. 
--Manual or automatically length compensation, quickly adjust the cutting length. 

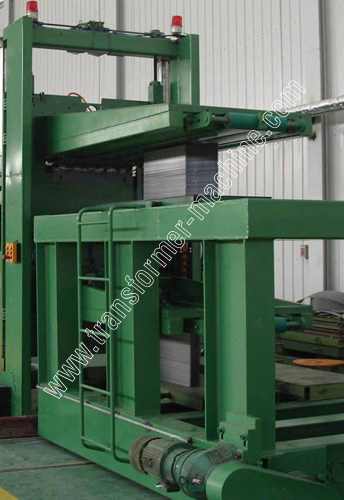

--Automatically cutting, separating and stacking 
--New strip shapes can be programmed and stored in our control system 
--Fault-stop function, the error point can be displayed on the displayer.

Specifications

Item

BHX-400

BHX-600

Strip length                                  mm

300~2500

400~3500

Strip width                                  mm

40~440

60~640

Strip thickness                            mm

0.23-0.35

Max. feeding speed                  m/min

240m/min

Length tolerance                         mm

+/-0.2

Positioning precision                  mm

0.1

Angle tolerance                        degree

+/-0.025

Cutting burr height                     mm

Less than 0.02

Punching burr height                 mm

Less than 0.03

Life of cutting/punching tools    times

More than 1 million (each grinding)

Stacking height                          mm

Max. 350mm

Stacking precision,  mm

transverse

3~5

longitudinal

10~25

Air consumption,                      m3/min

2

3
