Distributed Gap Core Cutting Machine

Distributed Gap Core Cutting Machine Distributed Gap Core Cutting Machine
Product name:Distributed Gap Core Cutting Machine
Item:1-19
Details:

 Video Link of Distributed Gap Core Cutting Machine
I Description of distributed gap core cutting machine:

This machine is developed by ourselves, similar to Unicore UCM machines, designed for cutting distributed gap cores in single phase or three phase distribution transformers and instrument transformers 500kVA ~ 5000kVA.
It has flexible software similar to Unicore machines, for different wound gap cores:

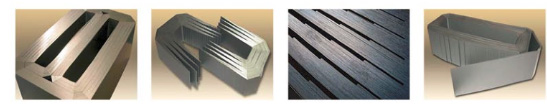

distributed gap cores
|distributed gap core cutting machine| Unicore core cutting machine| Unicore UCM cutting machine|
II Main features of distributed gap core cutting machine:

- Suitable for both single strip or double strips feeding

- PLC control, HMI operation

- Servo feeding, bending & cutting, high precision, high speed

- Compact structure, small occupation area
|distributed gap core cutting machine| Unicore core cutting machine| Unicore UCM cutting machine|
III Main technical data of distributed gap core cutting machine:

No.

Item

Data

1

Suitable max. silicon steel strip width

300mm

2

Suitable double-strip width

Max. 140mm x 2

3

Suitable silicon steel thickness

0.1~0.35mm

4

Strip feeding speed

Max. 100m/min

5

Strip bending & cutting speed

About 25~30 pcs/min

6

Feeding & cutting precision

+/-0.05mm

7

Gap core increment

0.1mm

8

Servo feeding motor power

2kW

9

Bending & cutting servo motor power

4.5kW

10

PLC, HMI, servo motor & driver

Delta from Taiwan

11

Cutting blade & bending die

Carbide alloy, more than 200,000 times before grinding

12

Main machine dimension

About 1600 x 1200 x 1700mm

13

Main machine weight

About 1100kg

14

Decoiler

Type

Cantilever, manual expansion

Capacity

900kg

Decoiling motor power

2.2kW, inverter control (Delta)

Dimension

About 1500 x 1170 x 1350mm

Weight

About 300kg

|distributed gap core cutting machine| Unicore core cutting machine| Unicore UCM cutting machine|distributed gap core cutting machine| Unicore core cutting machine| Unicore UCM cutting machine|
