Electrical Silicon Steel Iron Loss Tester

Electrical Silicon Steel Iron Loss Tester Electrical Silicon Steel Iron Loss Tester Electrical Silicon Steel Iron Loss Tester Electrical Silicon Steel Iron Loss Tester
Product name:Electrical Silicon Steel Iron Loss Tester
Item:1-18
Details:

I Description of electrical silicon steel iron loss tester
Iron loss tester is also called as magnetic flux density tester or magnetic permeability tester for single piece electrical silicon steel.
There are two kinds. TSY-1A is for single regular strip width more than 25mm; While TSY-2A can also be suitable for irregular strips such as EI laminations and motor core laminations.

II Main features of electrical silicon steel iron loss tester
-Testing on single electrical silicon steel strip, simple and convenient
- No need preparing special test sample, directly from any products
- AC sinusoidal power design, improving anti-interference ability
- Optimized air-compensation and test probe compensation, better test accuracy
- 4.3” colorful LCD displayer, better looking
- Equipped with RS232 interface for printing out test data
III Main technical data of electrical silicon steel iron loss tester

Item

TSY-1A

TSY-2A

Test objects

single piece, hot-rolled / Cold-rolled grain-oriented or non-grain-oriented electrical silicon steel strip

Strip thickness

0.10~0.99mm

Strip width

≥25mm

≥3mm

Strip length

≥25mm

≥25mm

Test capability

Magnetic flux density

1.0T~1.7T

Iron loss

0~20W/kg

Test frequency

50Hz

50Hz or 60Hz

Magnetizing method

AC sinusoidal current magnetization

Test accuracy

+/-5%

Power

90~240V

Max. electric power consumption

35W



Ambient condition

Temperature 15~45ºC; RH≤80%

Dimension

210 x 130 x 280mm

Weight

About 3.5kg

IV Standard accessories to be delivered with this electrical silicon steel iron loss tester:
- Test probe, one
- Silicon steel sample strip (CRGO and CRNGO), each one piece
- Power cable and probe data cable, each one piece
- Packing case: aluminum alloy

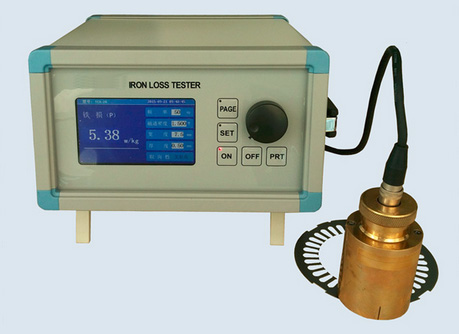

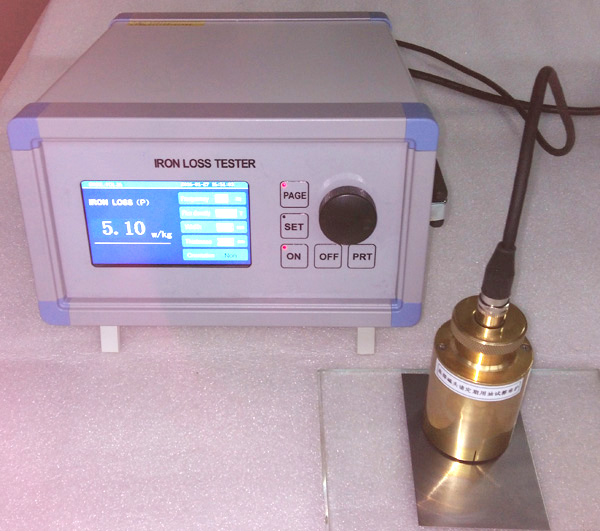

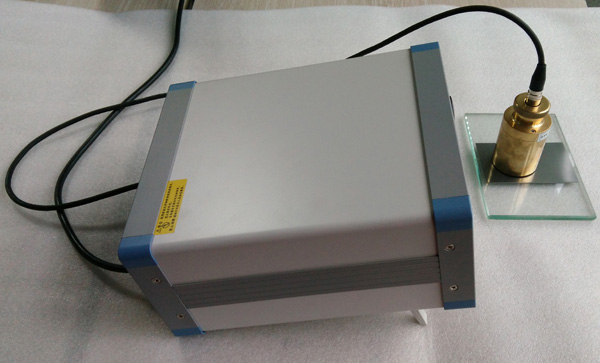

V Electrical silicon steel iron loss tester under working:
electrical silicon steel iron loss tester
electrical silicon steel iron loss tester

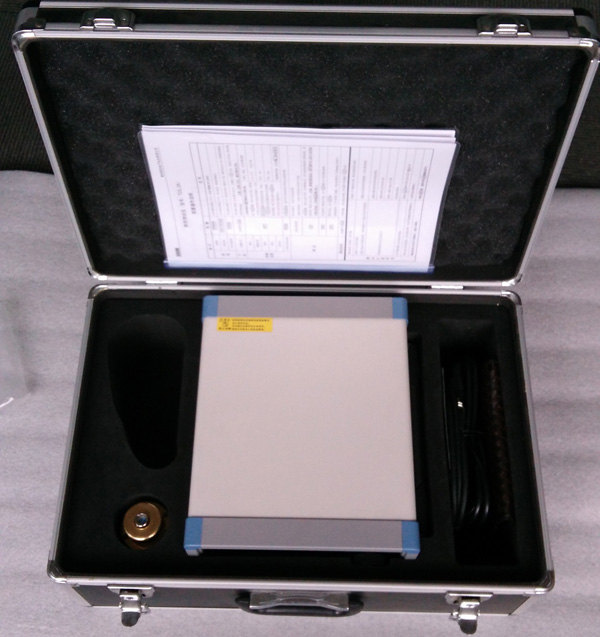

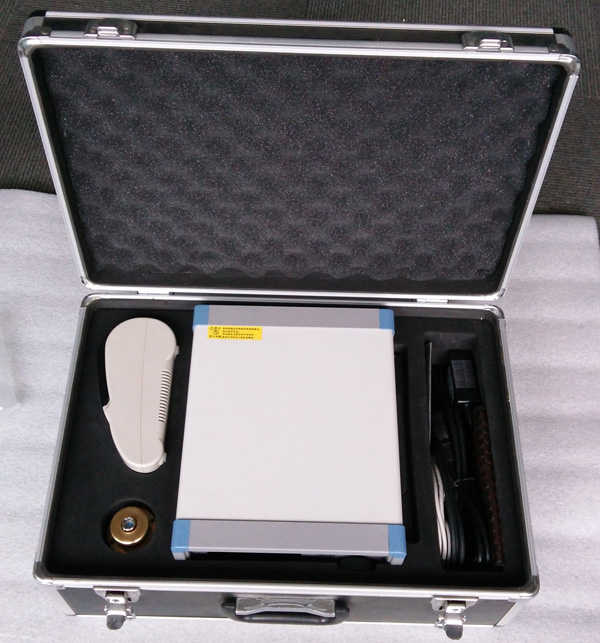

VI Package of electrical silicon steel iron loss tester for delivery:
electrical silicon steel iron loss tester

electrical silicon steel iron loss tester
