Compact Step-lap CRGO Mitred Core Cutting to Length Machine Line

Compact Step-lap CRGO Mitred Core Cutting to Length Machine Line Compact Step-lap CRGO Mitred Core Cutting to Length Machine Line Compact Step-lap CRGO Mitred Core Cutting to Length Machine Line Compact Step-lap CRGO Mitred Core Cutting to Length Machine Line

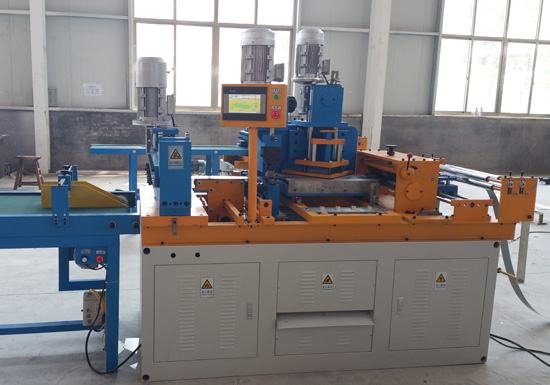

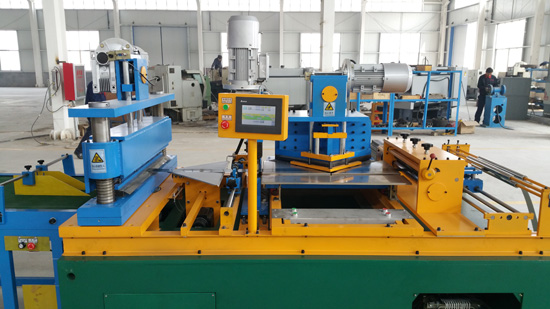

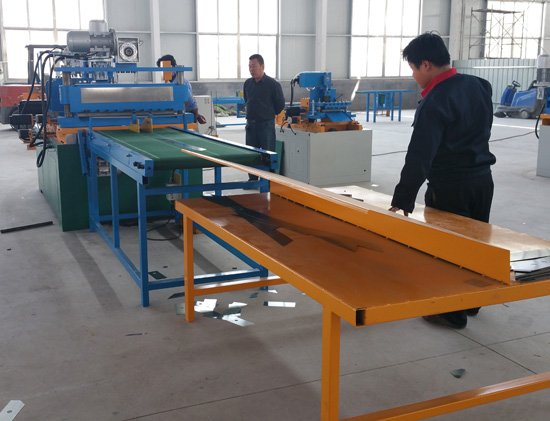

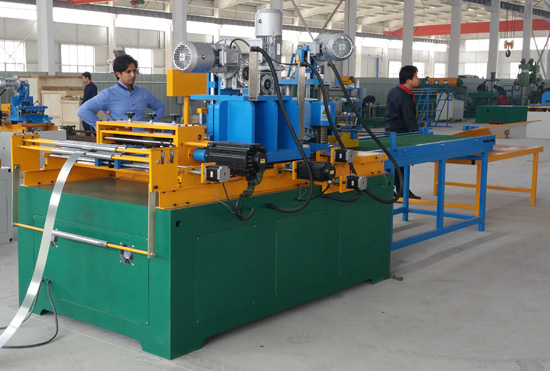

Product name:Compact Step-lap CRGO Mitred Core Cutting to Length Machine Line
Item:1-15
Details:

video of full automatic step-lap transformer core cutting machine video of full automatic step lap mitred core cut to length line
I Description:
This machine is specially designed for cutting CRGO coils into lamination strips for transformer cores, welding machine cores, and reactor cores.

This machine is developped by ourselves, similar to Georg swing shear cut to length line. It combines V notching, O punching and swing shear cutting together for cutting mitred cores full automatically.
It has max. 8 step-lap function, both horizontal and vertical step-lap. It is also suitable for cutting center limbs full automatically.

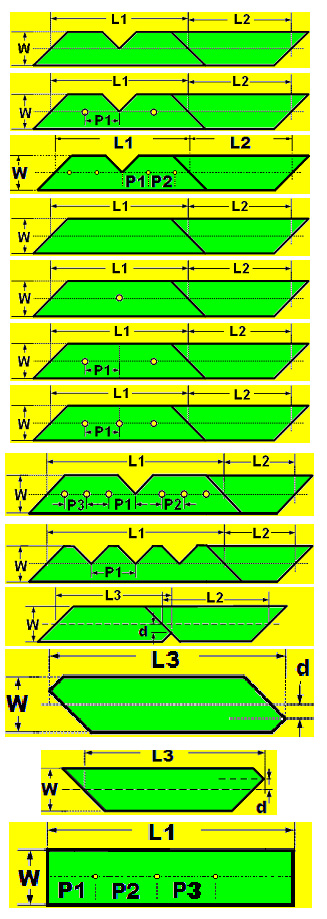

Lamination strips can be cut by this machine:

laminations can be cut by step-lap CRGO mitred core cutting to length machine line

II Main features  |step lap CRGO mitred core cutting to length machine line|

-- Delta AC servo system plus Delta PLC professional module achieve high precision feeding, quick response, high precision positioning, low noise; Max. feeding speed 100m/min, starting & braking time is less than 10ms.

-- Full automatic finishing cutting, swinging angle, counting, cutting right angle, trapezoid, parallelogram, fish-head, etc.

-- Equipped with online punching & V notching device, high productivity

-- Cutting, punching and notching motors are inverter control, quick and low noise (servo drive is optional)

-- Screw rod center positioning, driven by step motor, automatic positioning

-- Cutting blade, notching tool and punching tool are made by special carbide alloy, long life, less burr

-- Step-lap function, max. 8 steps  |step lap CRGO mitred core cutting to length machine line|

III Machine buildup  |step lap CRGO mitred core cutting to length machine line|
- Inverter-controlled decoiler
|step lap CRGO mitred core cutting to length machine line|
- Automatic centering & guiding devices
|step lap CRGO mitred core cutting to length machine line|
- High speed servo feeding device
|step lap CRGO mitred core cutting to length machine line|
- Online V notching device
|step lap CRGO mitred core cutting to length machine line|
- Online O punching device
|step lap CRGO mitred core cutting to length machine line|
- Servo swinging and cutting device
|step lap CRGO mitred core cutting to length machine line|
- Belt transmitting table
|step lap CRGO mitred core cutting to length machine line|
- Stacking table  |step lap CRGO mitred core cutting to length machine line|
- Control system
|step-lap CRGO mitred core cutting machine| step-lap CRGO mitred core cutting machine| step-lap CRGO mitred core cutting machine|
IV Main technical data  |step lap CRGO mitred core cutting to length machine line|

No.

Item

Data

1

Type Code

JN-3003C / 4003C/ 5003C/ 6003C

2

CRGO thickness

0.23-0.6mm

3

CRGO coil width

30-300/ 30-400/ 30-500/ 30-600mm

4

Cutting length

1-999999mm

5

Cut-to-length tolerance

+/-0.1mm

6

Cutting angle tolerance

+/-0.03°

7

Hole position tolerance

+/-0.1mm

8

Notch position tolerance

+/-0.1mm

9

Burr height

Less than 0.02mm

10

Feeding speed

Max. 100m/min

11

Production speed

30~60 pieces per minute

12

Punching/notching die

Carbide alloy

13

Cutting blade

Carbide alloy

14

Die & blade life

More than 1.2 million times before grinding

15

Max. step-lap stroke

40mm

16

Step-lap quantities

1, 2, 3, 4, 5, 6, 7

17

Servo motors

Delta from Taiwan

|step-lap crgo mitred core cutting to length machine line|step-lap crgo mitred core cutting to length machine line | step-lap mitred core cutting to length machine line|

←[Previous:1-16] [Next:1-6]→

Related Products :

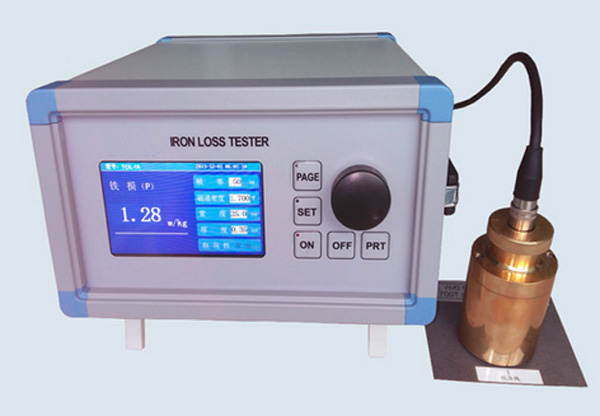

Electrical Silicon Steel Iron Loss Tester
Electrical Silicon Steel Iron Loss Tester

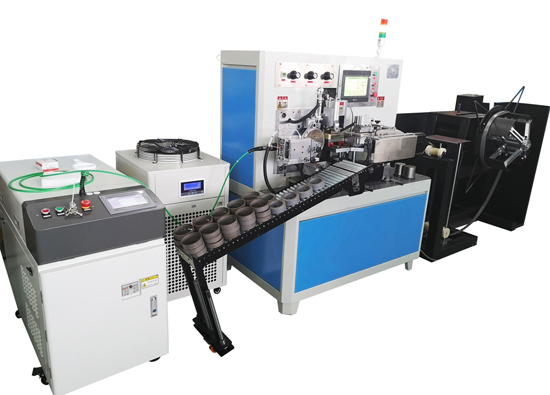

Full Automatic Toroidal Core Winding Machine
Full Automatic Toroidal Core Winding Machine
Silicon Electrical Steel Straight Cutting Machine
Silicon Electrical Steel Straight Cutting Machine

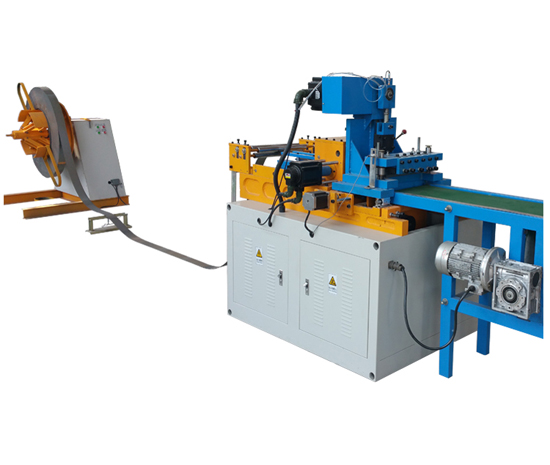

Compact Full Automatic Step-lap Transformer Core Cutting Machine
Compact Full Automatic Step-lap Transformer Core Cutting Machine
Toroidal Core Winding Machine
Toroidal Core Winding Machine

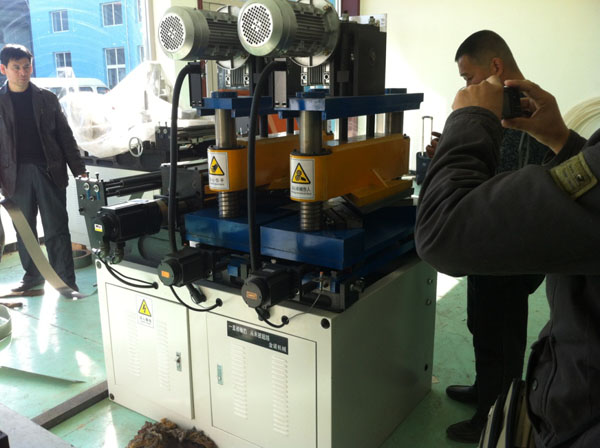

Transformer center limb cutting machine
