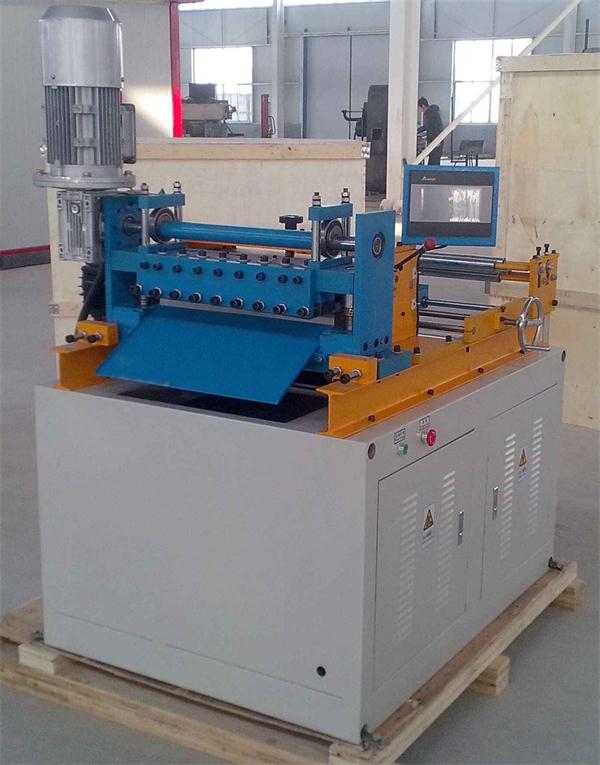

Compact Electrical Silicon Steel Cutting Machine

Compact Electrical Silicon Steel Cutting Machine Compact Electrical Silicon Steel Cutting Machine Compact Electrical Silicon Steel Cutting Machine
Product name:Compact Electrical Silicon Steel Cutting Machine
Item:1-7
Details:


Video link of compact silicon steel cutting machine Video link of silicon steel cutting machine with hole punch

I Description:

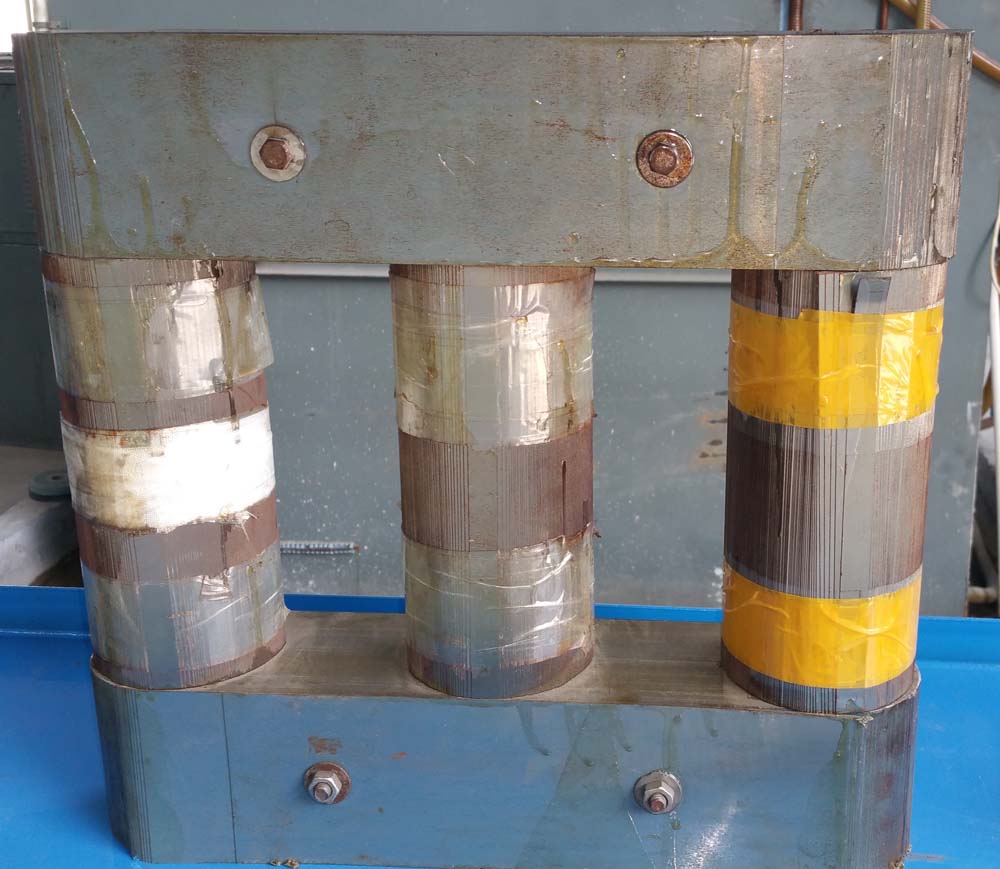

This machine is specially designed for cutting silicon steel coils into silicon strips for transformer cores, welding machine cores, and reactor cores.
|electrical silicon steel cutting machine| electrical silicon steel cutting machine| electrical silicon steel cutting machine|
II Production flow: decoiling, servo feeding, punching & cutting, collecting.

III Buildup of the machine:

3.1  Inverter-controlled decoiler:

- Motor power: 2.2kW     lectrical silicon steel cutting machine| electrical silicon steel cutting machine|

Max. coil weight: 1000kg    lectrical silicon steel cutting machine| electrical silicon steel cutting machine|

- Max. coil width: 300mm   lectrical silicon steel cutting machine| electrical silicon steel cutting machine|

- Coil inner diameter: 480-520mm

Coil outer diameter: 1200mm

3.2 High speed feeding device

Servo motor driving: Delta servo motor, 2kW

Feeding precision: +/-0.02mm

- Feeding speed: max. 100m/min

Feeding roller material: special mould steel in high hardness

3.3 Punching device

High speed punching, 50-100 times per minute

Hole precision: +/-0.02mm  |electrical silicon steel cutting machine| electrical silicon steel cutting machine|

Punching motor power: Delta servo motor 2kW

Punching die: carbide alloy, life more than 1,200,000 times before grinding, more han 20 times grinding

Hole position is pre-set on the touch screen

Max. hole numbers: 12  |electrical silicon steel cutting machine| electrical silicon steel cutting machine|

Max. hole diameter: 8-25mm

3.4 Straight Cutting device

High speed cutting, 50-100 times per minute

Cut-to-length tolerance: +/-0.02mm

- Cutting motor power: inverter controlled motor 2.2kW

Cutting blade: carbide alloy, life more than 2,000,000 times before grinding, more than 20 times grinding

- Quantity and length are pre-set on the touch screen

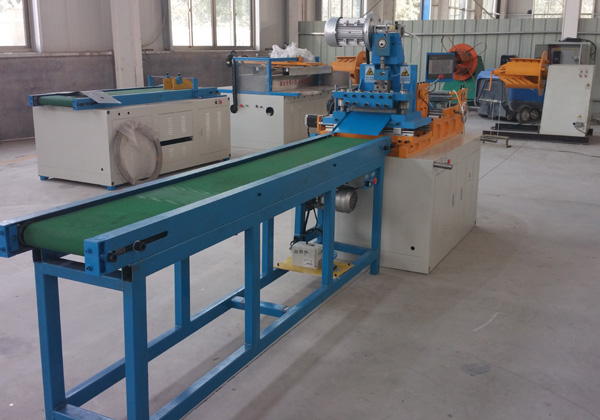

3.5 Run-out table: prepared by Buyer, for collecting cut pieces

3.6 Control system  |electrical silicon steel cutting machine| electrical silicon steel cutting machine|

- Delta PLC  |electrical silicon steel cutting machine| electrical silicon steel cutting machine|

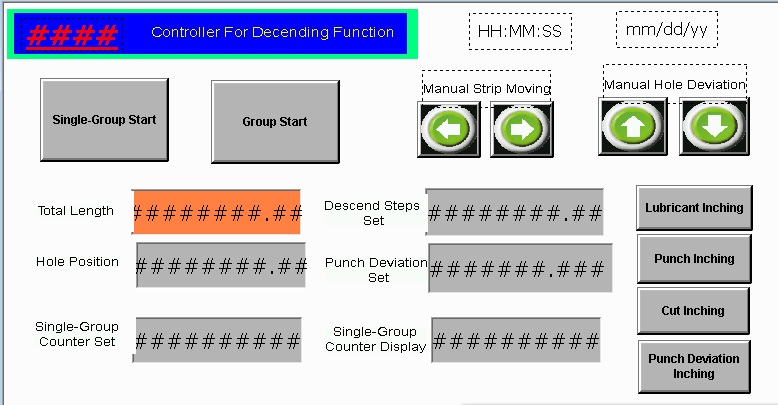

Delta touch screen 7”  |electrical silicon steel cutting machine| electrical silicon steel cutting machine|

Quantity, length, speed, hole numbers, hole positions can be pre-set on the touch screen

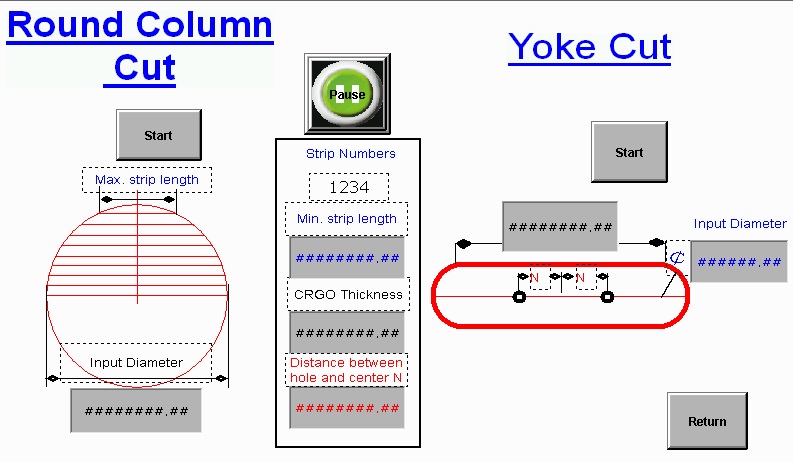

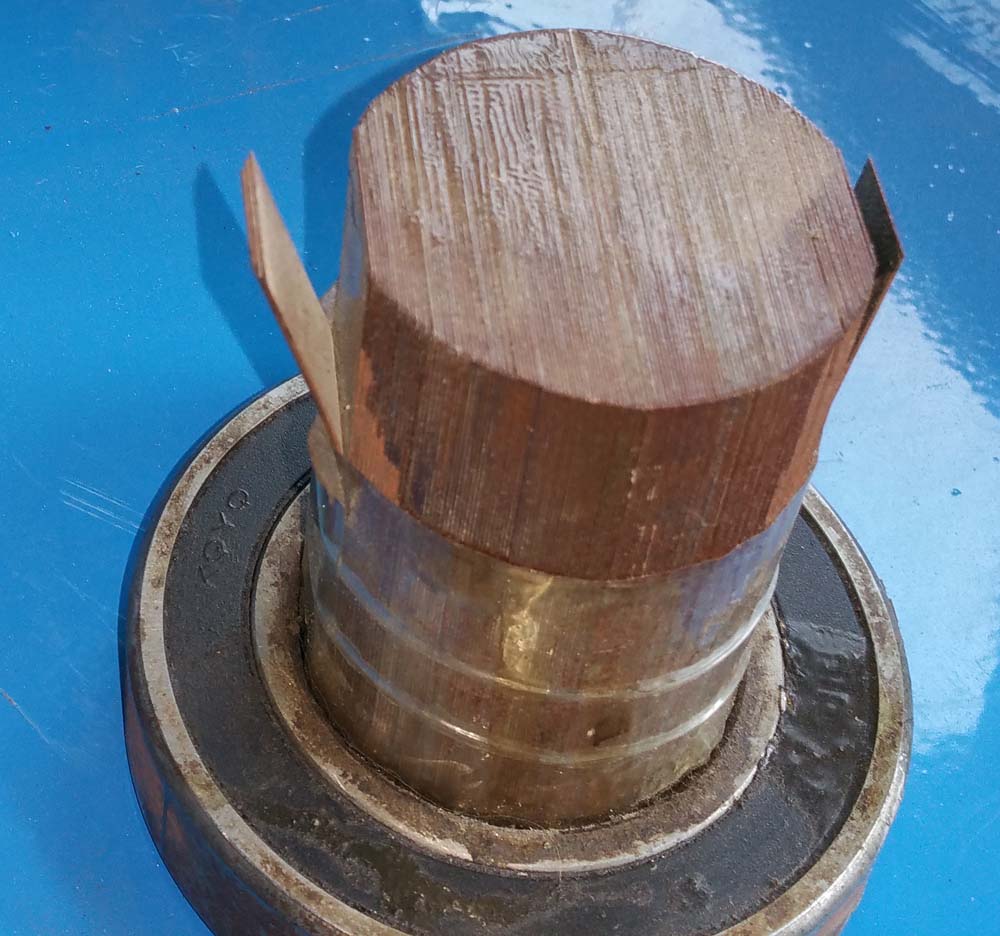

  - Special round column cutting function included:

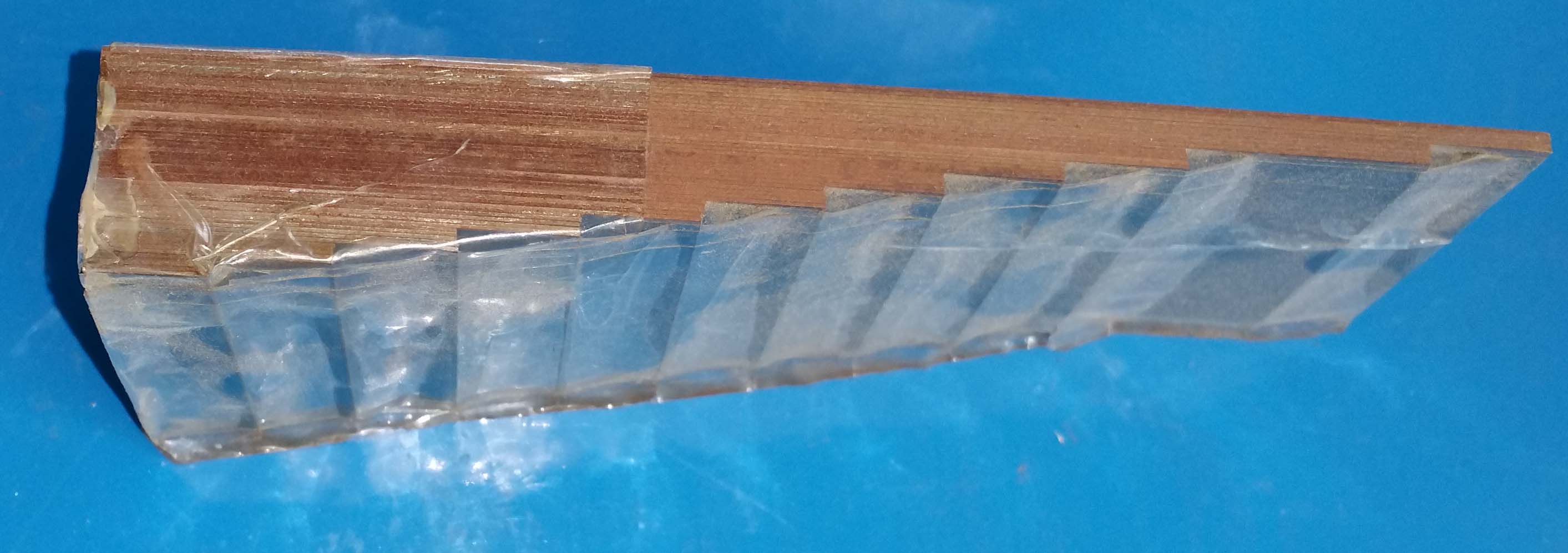

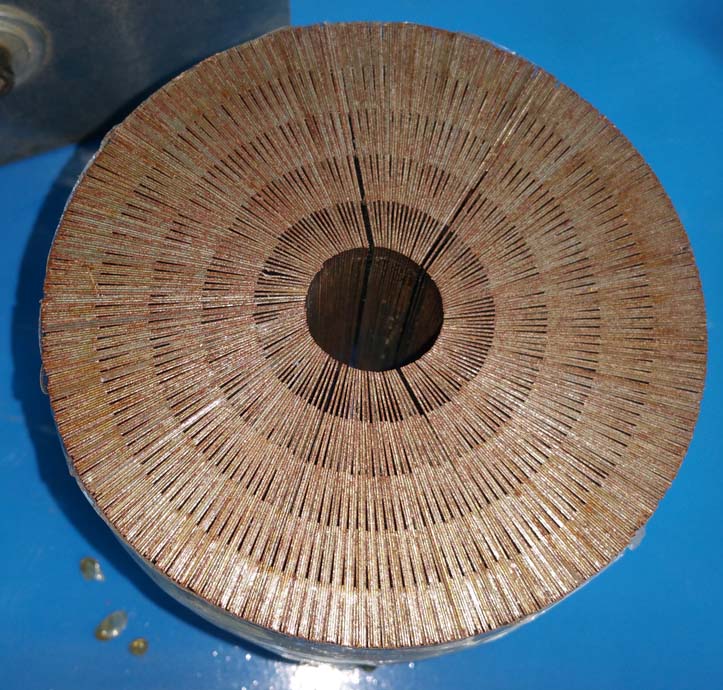

- Laminations can be cut by above flexible programs:


IV Main technical data

Item

Data

Suitable silicon steel strip width

30-300mm

Max. silicon steel thickness

0.6mm

Cut to length

1-999999mm

Cut to length tolerance

+/-0.02mm

Suitable hole diameter

8-25mm

Hole position tolerance

+/-0.02mm

Punching hole numbers

0-12

Burr height

Less than 0.02mm

Servo feeding speed

Max. 100m/min

Cutting speed

50-100 cuts per minute

Dimension

About 1200 x 1600 x 1200mm (main machine)

Weight

About 900kg

Note: Other width machines are also available: 200mm, 400mm, 500mm.
