Open core winding machine
Open core winding machine
Product name：Open core winding machine
Item：1-10
Details：

Description
This machine is specially designed for winding open cores used in dry type transformers. It can automatically feed CRGO strips, cut and wind into wound cores. The open core can be opened for installing coil windings.

Specifications
- Min. CRGO strip width: 78mm
- Max. CRGO strip width: 266mm
- CRGO thickness: 0.15-0.35mm
- Min. ID of cores: 114mm
- Max. ID of cores: 850mm
- Max. winding speed: 60m/min

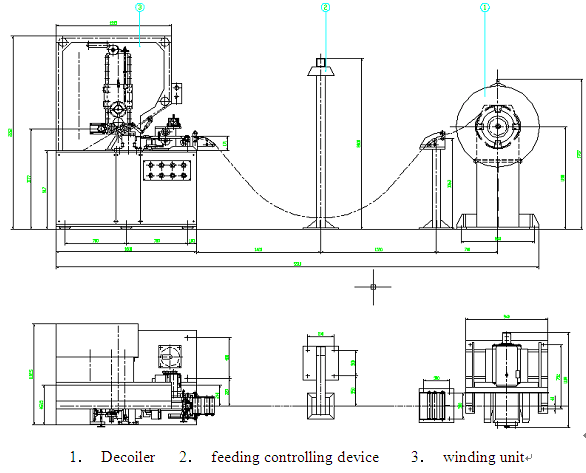

Layout
