Silicon Steel Slitting Line

Silicon Steel Slitting Line Silicon Steel Slitting Line Silicon Steel Slitting Line
Product name:Silicon Steel Slitting Line
Item:1-1
Details:

Video link of silicon steel slitting line
Description:

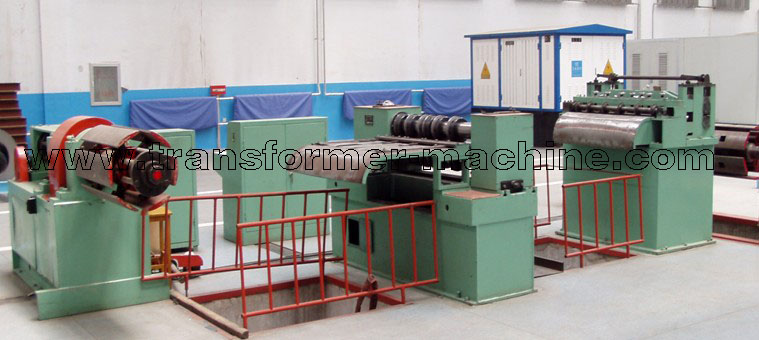

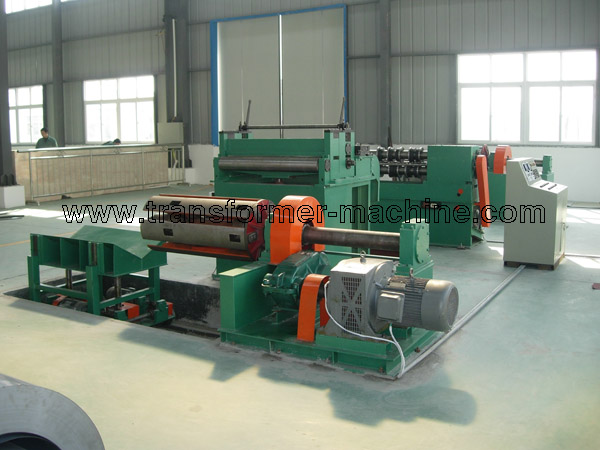

This line is in economical configuration, for cutting big silicon steel coil into strips for silicon steel cores used in transformer, current/voltage transformer and other electric apparatus.
|silicon steel slitting line| silicon steel slitting line| silicon steel slitting line| silicon steel slitting line| silicon steel slitting line|
Line buildup:
- Motorized loading car
- Motorized expansion decoiler
- No.1 storage pit
- Slitting machine
- No.2 storage pit
- Guiding & damping device
- Motorized expansion recoiler
- Motorized unloading car
- Electric control system

Main technical data:



No.

Item

Data

1

Type Code

BGJ-1000 (BGJ-1250)

2

Steel coil thickness

0.23-0.6mm

3

Max. coil width

1000mm (1250)mm

4

Max. coil weight

5T (6T)

5

Decoiling coil inner diameter

460-520mm

6

Decoiling coil outer diameter

1200mm

7

Slitting speed

10-60m/min

8

Burr height

Less than 0.02mm

9

Number of slitting

Max. 20 pieces

10

Min. slitting width

40mm

11

Slitting blade material

Carbide alloy

12

Slitting blade size

120 /198.45 /18mm

13

Slitting blade life

More than 100km before grinding

14

Slitting accuracy in width

Less than 0.2mm

15

Recoiling coil ID

500mm

16

Recoiling coil weight

5T (6T)

17

Total power

About 29kW

18

Total length of the line

11m (12m)

19

Total weight

About 10T (14T)
