High Speed Silicon Steel Slitting Line

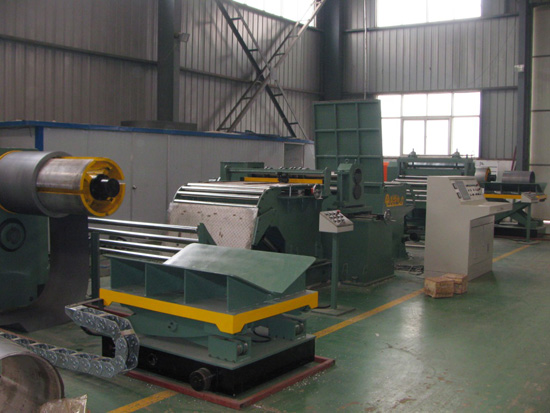

High Speed Silicon Steel Slitting Line High Speed Silicon Steel Slitting Line
Product name:High Speed Silicon Steel Slitting Line
Item:1-2
Details:


This silicon electrical steel slitting line has high configuration and high speed more than 120m~150/min.
Line buildup:
1) Hydraulic expansion decoiler
2) Storage pit No.1
3) Guiding device
4) Slitting device
5) Waste strip mincing device
6) Storage pit No.2
7) Pressing & damping device
8) Hydraulic expansion recoiler
9) Hydraulic unloading trolley
10) Hydraulic system
11) PLC control system

Main Configurations:
1) Omron PLC, touch screen and encoder from Japan
2) Inverters (three sets) from Japan, Mitsubishi brand
3) Electromagnetic valve (two) from German, Festo
4) Approaching switches, phototubes (three sets) from German, Festo
5) Ultrasonic speed adjusting switch: Turck from Germany
6) Hydraulic components: Yuken brand from Sino-Japan joint venture
7) Buttons, indicators, electric components: Schneider brand from joint venture in China
8) Control panel & electric box: Rittal from Germany

Specifications:

No.

Item

Data

1

Silicon coil width

200-1250mm

2

Silicon coil thickness

0.23-0.35mm

3

Max. linear speed

120m/min

4

Max. slitting strips

10

5

Waste strip width

3-10mm

6

Slitting width

40-1250mm

7

Width precision

±0.1mm

8

Linear precision

±0.15mm (within 2m)

9

Burr height

Less than 0.02mm

10

Total line motor power

60kW

←[Previous:1-7] [Next:1-1]→
