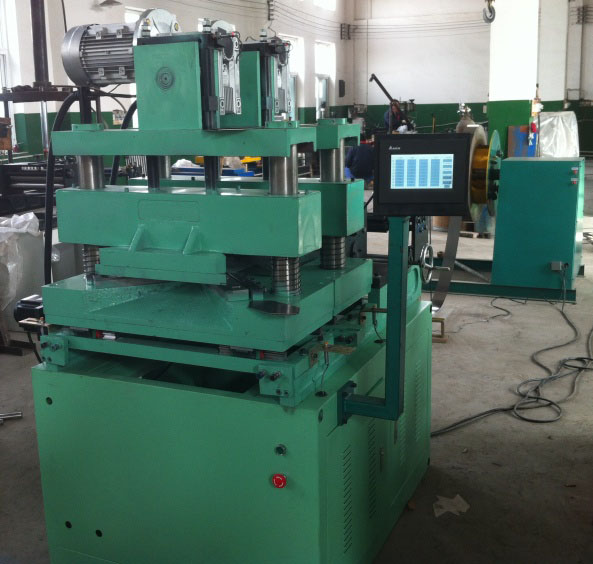

Transformer center limb cutting machine

Transformer center limb cutting machine Transformer center limb cutting machine Transformer center limb cutting machine
Product name:Transformer center limb cutting machine
Item:1-13
Details:


Video link of transformer center limb cutting machine

I Description

This machine is designed special for cutting center limbs of transformer core.

This machine is PLC control, touch screen operation, full automatic.

This machine adopts specially designed motorized cutting device, good stability and high speed, e.g., when core lamination length 200~400mm, one minute can cut 38 pieces.

II Buildup of the machine:

2.1  Inverter-controlled decoiler:
- Motor power: 1.5kW, inverter control
- Max. coil weight: 500kg
Max. coil width: 300mm
- Coil inner diameter: 480-520mm
- Coil outer diameter: 1200mm

2.2 High speed feeding machine
 - High precision servo motor: Delta servo motor & drive, 2.0kW, 2000-200,000 impulse per minute
 - Feeding precision: +/-0.02mm
 - Feeding speed: max. 100m/min (1-80 times per minute)
 - Feeding roller material: special tool steel in high hardness

2.3 Cutting device (two V-shape heads)
 - High speed cutting, 50-100 times per minute
 - Cut-to-length tolerance: +/-0.2mm
 - Cutting motor power: 2kW x 2
 - Cutting blade: high hardness ceramal steel imported from Germany, life more than 5000,000 times before grinding

2.4 Run-out table: prepared by Buyer, for collecting cut pieces

2.5 Control system
 - Delta PLC
 - Delta touch screen 7”
 - Quantity, length, speed, lamination shape, can be pre-set on the touch screen

III Main technical data

3.1 Suitable silicon steel strip width: 40-300mm

3.2 Suitable silicon steel strip thickness: 0.23-0.5mm

3.3 Cutting length: 200-90,000,000mm

3.4 Cut-to-length tolerance: +/-0.2mm

3.5 Burr height: less than 0.02mm

3.6 Cutting angle precision: +/-0.03°

3.7 Feeding speed: max. 100m/min

3.8 Dimension: about 1.6m x 1.0m x 1.2m

3.9 Weight: about 700kg
