SF6 multi-function analyzer

SF6 multi-function analyzer
Product name:SF6 multi-function analyzer
Item:6-29
Details:


I Description

For successful SF6 Gas Recycling and Reuse it is essential to know three impurity values. These are:

·       Purity of SF6 Gas

·       Moisture Content

·       Concentration of SF6 Decomposition Products

This multi-function analyzer can analyze those three values, therefore providing a very convenient way to determine the reusability of SF6 gas and on-site validation of recycling efforts.

This analyzing meter can finish three measurements one time so saving gas used and reducing air pollution.

This meter adopts world famous sensors from overseas. Sensor for moisture is from Finland; Sensor for purity is from Germany; Sensor for decomposition products is from UK special for SF6 gas.

II Main features

1)      Big size sunlight readable LCD, graphic menu

2)      With data communication interface

3)      Electron flux and electricity displaying

4)      Measured data automatically saved and printed

5)      Instrument self-diagnosing function

6)      AC/DC power supply, built-in rechargeable Lithium ion battery

7)      Compact, light and portable, low maintenance

8)      With data management system software

III Main technical data

3.1 SF6 moisture:

1) Measuring range: -80°C ~ +20°C (dew point)

2) Precision: ± 0.5°C

3) Resolution ratio: 0.01°C or 0.1ppm

4) Response time at 63% (90%)

  +20-20°C Td 5s (45s)

  -20-60°C Td 10s (240s)

5) Repeatability: +/-0.4°C

6) SF6 gas flux adjustment at 0.5~0.9L/min

7) Probe protection: stainless steel sintering filter

3.2 SF6 purity

 1) Measuring range: 0~100%

 2) Precision and repeatability: +/-0.4%, not related to flux

 3) Response time: 15s at 90%

3.3 SF6 decomposition by-products

 1) H2S: 1~200ppm

 2) SO2: 1~100ppm

 3) HF: 0~10ppm (optional)

 4) Precision: +/-1ppm

3.4 Other main parameters

 1) Built-in rechargeable lithium ion battery, 3500mAH, with over-charge protection

 2) Working pressure: 0~1.0MPa

 3) Sample gas flux: no relation

 4) Equipped with electron flux meter

 5) Output interface: USB1.1

 6) Dimension: 285mm (W) x 165mm (D) x 320mm (H)

 7) Weight: about 3.5kg

←[Previous:6-30] [Next:6-28]→

Related Products :
Hand-hold battery internal resistance tester
Hand-hold battery internal resistance tester
Intelligent Insulation Resistance Meter
Intelligent Insulation Resistance Meter
Battery activator
Battery activator
SF6 Moisture Analyzer
SF6 Moisture Analyzer
Power quality analyzer
Power quality analyzer
Automatic Capacitor Tester Bridge
Automatic Capacitor Tester Bridge
ZK-IV Vacuum switch vacuity tester
ZK-IV Vacuum switch vacuity tester

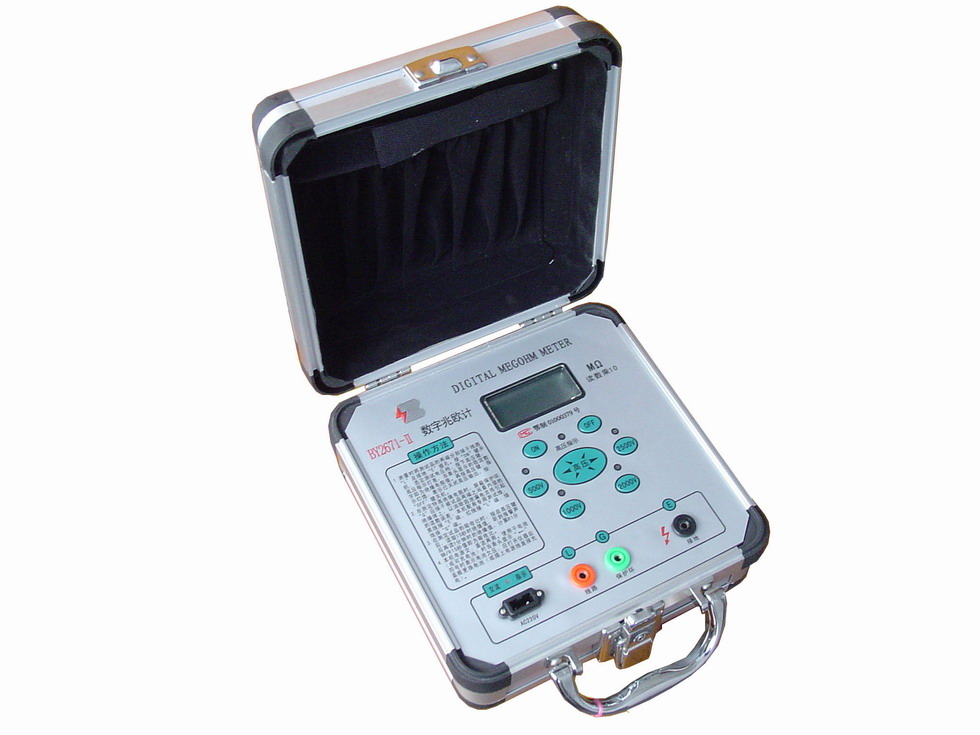

Digital Megaohm Meter
