Hand-hold battery internal resistance tester

Hand-hold battery internal resistance tester Hand-hold battery internal resistance tester Hand-hold battery internal resistance tester Hand-hold battery internal resistance tester

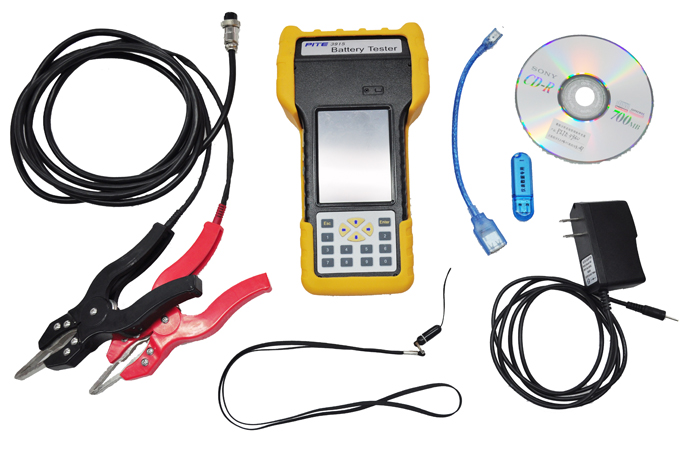

Product name:Hand-hold battery internal resistance tester
Item:6-35
Details:


I Description:

IR3915 is a new generation of battery tester for internal resistance, touch screen operation!

It is strictly designed to evaluate and maintain all stationary power systems including uninterruptible power system.

By accurately testing battery internal resistance and voltage, it gives an indication of battery capacity and technical status, for grouping new cells or identifying lag-out cells.

There are key-board and touch screen operation methods.

It can carry out both group test and single cell tests.

II Features

--Wide test range: 5~6000Ah, compatible for cell of 1.2V, 2V, 6V and 12V

-- Colorful touch screen, menu operation, or operated by keyboard

--portable only 0.5kg; smart, full automatic

-- Simultaneously test voltage, resistance and relative percentage of batteries

-- Strong anti-interference in high current with stable and accurate performance

-- Testing frequency less than 10 Hz, effectively avoid interference from resistance of battery itself

-- Direct USB drive for software update and data transfer to PC for further analyzing

-- Powerful PC management software, convenient for data storing and analyzing

-- Big memory for testing data storage of more than 3000 cells

-- Buzzer Alarm Function and over voltage protection

-- Auto-calibration function before testing enhances the testing accuracy

-- Retest and compensation function: any faulty operation or omission could be retested with one click

-- Build-in reference value and self-defined value for comparison of testing result

III Applications

1. Telecom: Central Office / data processing centers / Remote Sites

2. Power Utility: Switchgear/ Power Station / Power Plant

3. Financial Institutions: Corporate Data Centers

4. Petrochemical: Process Control systems

5. Offshore platforms

6. Government: Local and regional 110 / 911 Centers

7. Tax and Revenue Processing Centers

8. Homeland Security / Schools / Army/ Navy

9. Air force Facilities / Fire and Police Agencies

10. Family use

11. Hospital UPS system

12. Electrical vehicle suppliers

13. SLA battery manufactures

IV Technical Parameters

Item

Parameter

Test range

Internal resistance

0~100mΩ

Voltage

0~220V

Resolution ratio

Internal resistance

0.1mΩ

Voltage

1mV

Test precision

Internal resistance

±1.0% reading ±6

Voltage

±0.2% reading ±6

LCD display

320*240

Power supply

Lithium ion battery, rechargeable, more than 8 hours per charge

Measuring data memory

3000 cells

Com port

USB

Dimension

190 x 100 x 30mm

Weight

0.5kg
