I Description:

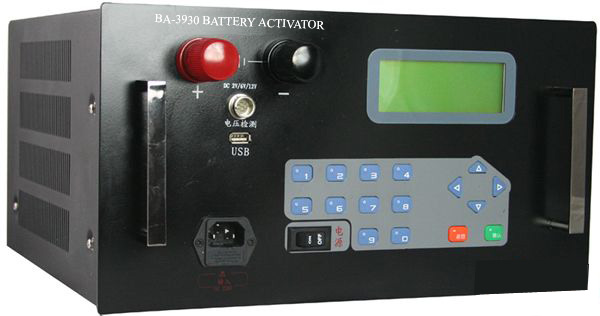

BA3930/3932 intelligent battery activator is a portable instrument for daily maintenance of single cell which is lag-out in one lead-acid battery.
It plays three roles for complete solutions: charger (DC power supply), discharger (DC load bank) and activator.
These three functions can be used individually or comprehensively. When used comprehensively, lag-out battery will experience low-volt constant current charging and discharging singly or in multi-circles (1~99). By activating the disabled active material on battery electrode plate, it amends the cell malfunction caused by chemical failure and thus boosts the capacity of old cell. Activation curve and certain parameters (e.g.: voltage and resistance) will display on screen as activation ends.
II Features
-- Small size, portable and user-oriented
-- Applicable to single cell of 2V, 6V and 12V
-- 3-in-1: charging, discharging and activating
-- Test waveform playback function
-- All-rounded and accurate testing results with vivid waveforms
-- Can charge/discharge battery singly and circularly for many times
-- Long-time monitoring of the battery condition
-- Safety circuits prevent damage to battery under test
-- Direct USB drive for data transferring to PC
-- Powerful DataView software for testing data analyzing and report printing
-- Simple and fast software updating via USB
-- Meaningful for resources utilization and efficiency increasing
III Technical Parameters
|
Parameters
|
Measurement Mode
|
Resolution
|
Accuracy
|
|
Charging current
|
1-100A (2V) 1-30A (12V)
1-30A(6V)
|
1A
|
1%
|
|
Discharge current
|
1-100A(2V) 1-30A(12V )
1-30A(6V)
|
1A
|
1%
|
|
Total charging voltage
|
1.7-2.4V(2V) 5.4-7.2V(6V)
10.2-15V(12V)
|
0.1V
|
0.25%
|
|
Total discharging voltage
|
1.7-2.4V(2V) 5.4-7.2V(6V)
10.2-15V(12V)
|
0.1V
|
0.25%
|
|
Power supply
|
AC220V±10%
|
|
|
LCD display
|
192*64/ 128*64
|
|
Temperature
|
5°C～50°C
|
|
Humidity
|
5%～90%RH
|
|
Dimension
|
395*370*200 mm
|
|
Weight
|
10Kg
|
|
Communication
|
USB interface
|
