Underground Cable Fault Locator

Underground Cable Fault Locator Underground Cable Fault Locator Underground Cable Fault Locator Underground Cable Fault Locator

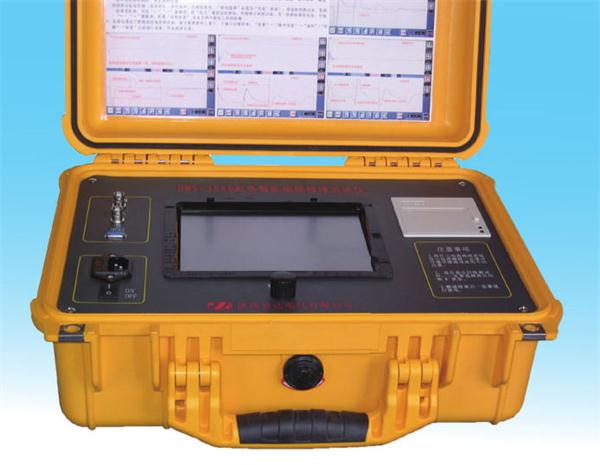

Product name:Underground Cable Fault Locator
Item:6-39
Details:

 Cable Fault Locating & Detecting System

(Large Voltage Range: 380V-220kV)

I Description

This system is specially for locating and detecting faults on power cables, whatever underground or over-head.

This system is suitable for super wide voltage range from 380V to 220kV.

This system covers all kind of cable faults:

1) Low-resistance fault (short-circuit fault, less than 100 ohm)

2) Broken fault (open-circuit fault)

3) High-resistance leakage fault (more than 100 ohm)

4) High-resistance flashover fault (arcing fault)

System buildup:

No.

Item

Remarks

1

GCY-4000 cable fault tester



2

GCY-R multiple pulse processing unit



3

GCY-E multifunctional integrated HV generator



4

35kV-4µF dry pulse capacitor



5

GCY-III cable fault locator



6

GCY-II route detector

optional

7

Cable sheath fault locator

optional

8

Cable identification instrument

optional

9

Intelligent cable trial piercing device

optional



[Next:6-38]→
