Transformer Oil Filtration Machine

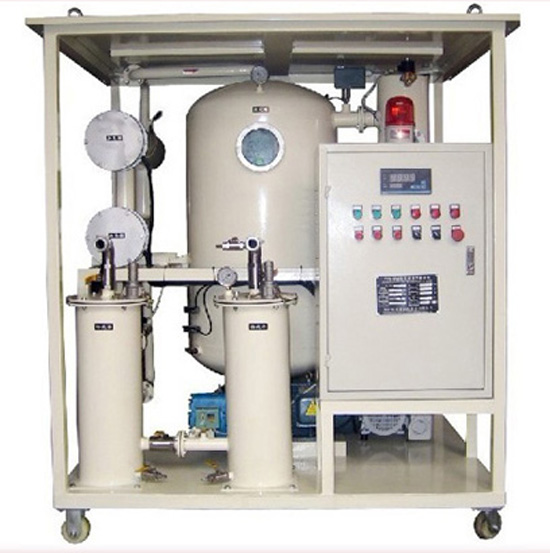

Transformer Oil Filtration Machine Transformer Oil Filtration Machine
Product name:Transformer Oil Filtration Machine
Item:5-12
Details:


I Description:

ZYD series transformer oil filtration machine, also called as vacuum oil purifier, transformer oil filtering machine,  is the best option for dehydrating, degassing and purifying different kind of insulation oils used in high voltage transformers and circuit breakers, etc.

It is suitable for installation site and overhauling site working because of combining vacuum degassing and vacuum filling functions together.

There are many optional configurations for transformer oil filtration machine, such as PLC control, super-fine filtering, explosion-proof, trolley movable, full-seal housing, etc.
II Main features

 - Double-stage, high vacuum pressure and high flow rate

 - Adopting Japanese 3D flash distillation technique, better degassing & dehydrating efficiency.

 - Precise fine multi-stage filtration

 - Automatic pressure protection, automatic constant temperature control, automatic oil level control

 - Low noise level, simple operation and maintenance

III Technical parameters:

Item

Unit

ZYD-30

ZYD-50

ZYD-100

ZYD-150

ZYD-200

ZYD-300

ZYD-500

Rated flow

L/H

1800

3000

6000

9000

12000

18000

30000

Working vacuity

MPa

-0.08 — -0.099

Working pressure

MPa

≤0.5

Constant temperature range

ºC

20 — 80

Filtration fineness

μm

1~5

Noise level

dB(A)

≤78

Heating power

kW

30

45

60

90

135

180

216

Total power

kW

35

50

66

96

142

191

230

I/O pipe gauge

mm

25

32

40

50

50

65

80

Machine weight

kg

600

800

1000

1300

1800

2100

2400

Dimension

L

mm

1200

1250

1450

1600

1600

1800

1900

W

mm

1200

1250

1400

1600

1600

1700

1900

H

mm

1700

1750

1800

2100

2150

2250

2300

IV Guarantee performance index:
