In-plant transformer transporting hovercraft

In-plant transformer transporting hovercraft In-plant transformer transporting hovercraft In-plant transformer transporting hovercraft In-plant transformer transporting hovercraft
Product name:In-plant transformer transporting hovercraft
Item:9-15
Details:

Video Link


Description of in-plant transformer transporting hovercraft:

Hovercraft is a new means of transportation. Its principle is to form one layer of air film between air cushion and earth and make the hovercraft “suspend”. So now the friction between hovercraft and earth is very small and a slight thrust can push the hovercraft which is bearing hundreds tons move easily.   |in-plant transformer transportating hovercraft|

Comparing to traditional transportation measures, hovercraft is safer, higher efficiency, more flexible and stable and of course much cheaper!  |in-plant transformer transportating hovercraft|in-plant transformer transportating hovercraft|

Hovercrafts are widely used in manufacturing transformers, diesels, locomotives, automotives etc. and logistic transportation industry as well.

 |in-plant transformer transportating hovercraft|in-plant transformer transportating hovercraft|

Main features of in-plant transformer transporting hovercraft:

1)      Stable function: suitable for continuous stable working, low noise, few maintenance

2)      Automatic level adjusting, free from unbalance loading or liquid object sloshing

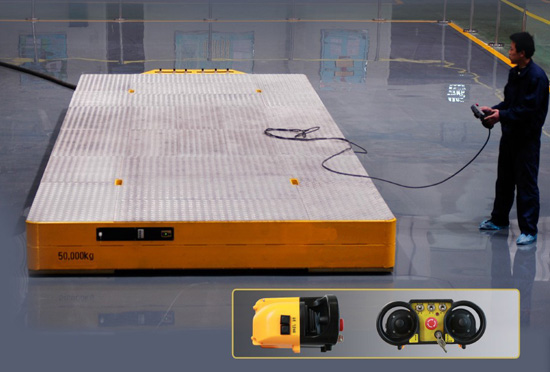

3)      Wireless remote control

4)      Two hovercrafts parallel or serial connecting available, for heavier objects

5)      Safety measures: anti-collision protection, emergency stop, air-pipe end alarming, pneumatic pressure insufficient alarming, etc.

6)      Fault diagnosing: automatic self-diagnosing, easy maintaining

Advantages of hovercraft transportation:

Item

Hovercraft transportation

Traditional transportation (crane, forklift, trolley)

Transport flexibility

No track route limit

Limited by fixed rail or space

High efficiency transport

Just after hover enter into transport tooling

Only after being fixed by rope and hook, etc.

Workshop & facility investment

No need special workshop and foundation

High cost of workshop & crane

Subsequent maintenance cost

About 2% of initial investment

8~15% of initial investment

Workshop preparation

No rail required; workshop layout can be changed optionally

Rail needed; layout can’t be changed

Environmental

Electricity and compressed air, clean power

One 15T diesel forklift consumes 6570L/year

Safety

In the worst, if air cushion breaks, load will inclines 1 degree

Crane/forklift problems may cause tremendous loss

Adaptability to irregular load

Perfect by different transport tooling

Dangerous and low efficient if using two cranes together

We can provide hovercrafts for in-plant transportation from 2T to 300T. Please contact us for details. And two hovercrafts can be parallel connected for bibber size objects.  |in-plant transformer transportating hovercraft|in-plant transformer transportating hovercraft|
