Product name:Copper Welding Machine
Item:9-1
Details:

There are different kind of copper welding machines for transformer production, hand holding type, screw-rod elevating type and motorized elevating type.

1. Hand holding type

Description:

This machine is for welding small section copper wires. Welding torch is hand clamp type, with 2m long cable.

The workpiece surface is heated evenly, no naked flame, very slight oxidation; Quick heating speed, good welding result and efficiency.

Control voltage is only 36V, safe and reliable.

The main welding machine is equipped with wheels, movable for convenient welding purpose.

Technical parameters:

Capacity

Primary current

(A)

Copper section

(mm2)

Clamp opening

(mm)

Clamp throat

(mm)

Weight

(kg)

Dimension

(mm)

2kVA

5.3

20

20

55

40

480 x 260 x 450

5kVA

13

50

25

75

67

780 x 360 x 640

10kVA

26

100

30

80

122

770 x 380 x 710

16kVA

42

160

30

80

143

800 x 390 x 735

20kVA

52

200

30

80

159

840 x 440 x 720

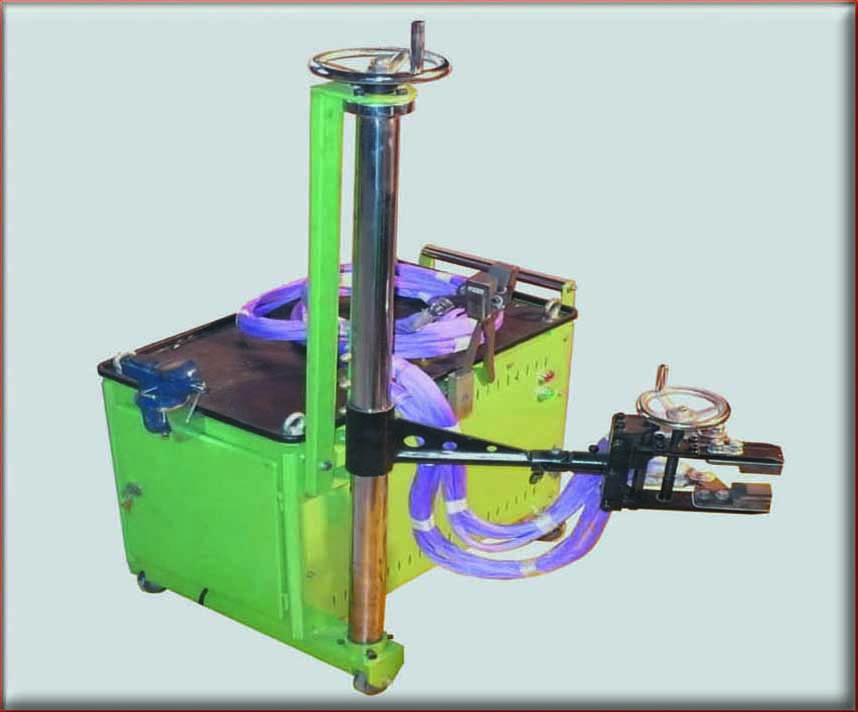

2. Screw-rod elevating type

Description:
The height of welding torch is adjusted via screw rod by manually rotating hand wheel. The torch can rotate both on plane and vertical. So it is especially suitable for copper welding during transformer body assembling and repairing.

Max. height of welding torch to ground is 1300mm.

Min. height of welding torch to ground is 150mm.

Arm of welding torch can be rotated on plane 180 degree.

Welding torch can rotate 360 degree vertically.

Clamping method of welding torch to workpiece is of hand wheel plus screw rod.

Technical parameters:

Capacity

Primary current

(A)

Copper section

(mm2)

Clamp opening

(mm)

Clamp throat

(mm)

Arm length

(mm)

Weight

(kg)

Dimension

(mm)

20kVA

52

200

55

120

600

169

720 510 x 1400

30kVA

79

300

65

120

700

200

990 x 550 x 1400

50kVA

132

500

90

130

800

282

1030 x 600 x 1400

75kVA

197

750

95

150

1000

353

1080 x 630 x 1400

100kVA

263

1000

95

150

1000

425

1120 x 680 x 1400

125kVA

329

1250

95

150

1000

510

1170 x 710 x 1400

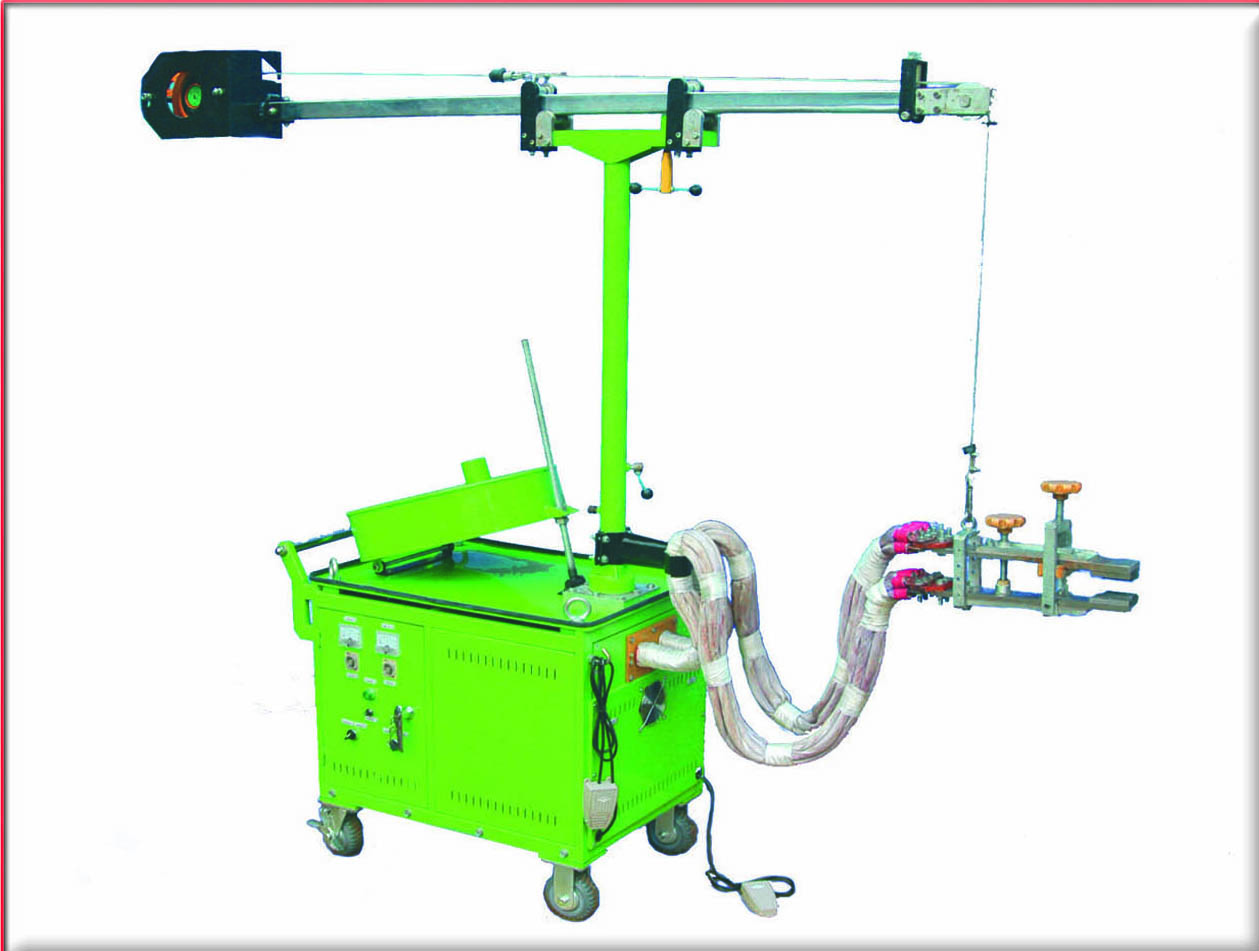

3. Motorized elevating type

Description:
The welding torch is elevated by a towing motor, controlled manually, very convenient. The torch can rotate both on plane and vertical. So it is especially suitable for copper welding during transformer body assembling and repairing.

Max. height of welding torch to ground is 1600mm.

Arm of welding torch can stretch out 200mm more and can rotate on plane 90 degree.

Clamping method of welding torch to workpiece is of hand wheel plus screw rod.



Technical parameters:

Capacity

Primary current

(A)

Copper section

(mm2)

Clamp opening

(mm)

Clamp throat

(mm)

Weight

(kg)

Dimension

(mm)

30kVA

79

300

40

60

342

1340 x 560 x 1800

50kVA

132

500

50

80

369

1440 x 600 x 1800

75kVA

197

750

60

100

422

1590 x 640 x 1800

100kVA

263

1000

80

110

515

1630 x 680 x 1800

125kVA

329

1250

90

120

607

1670 x 720 x 1800
